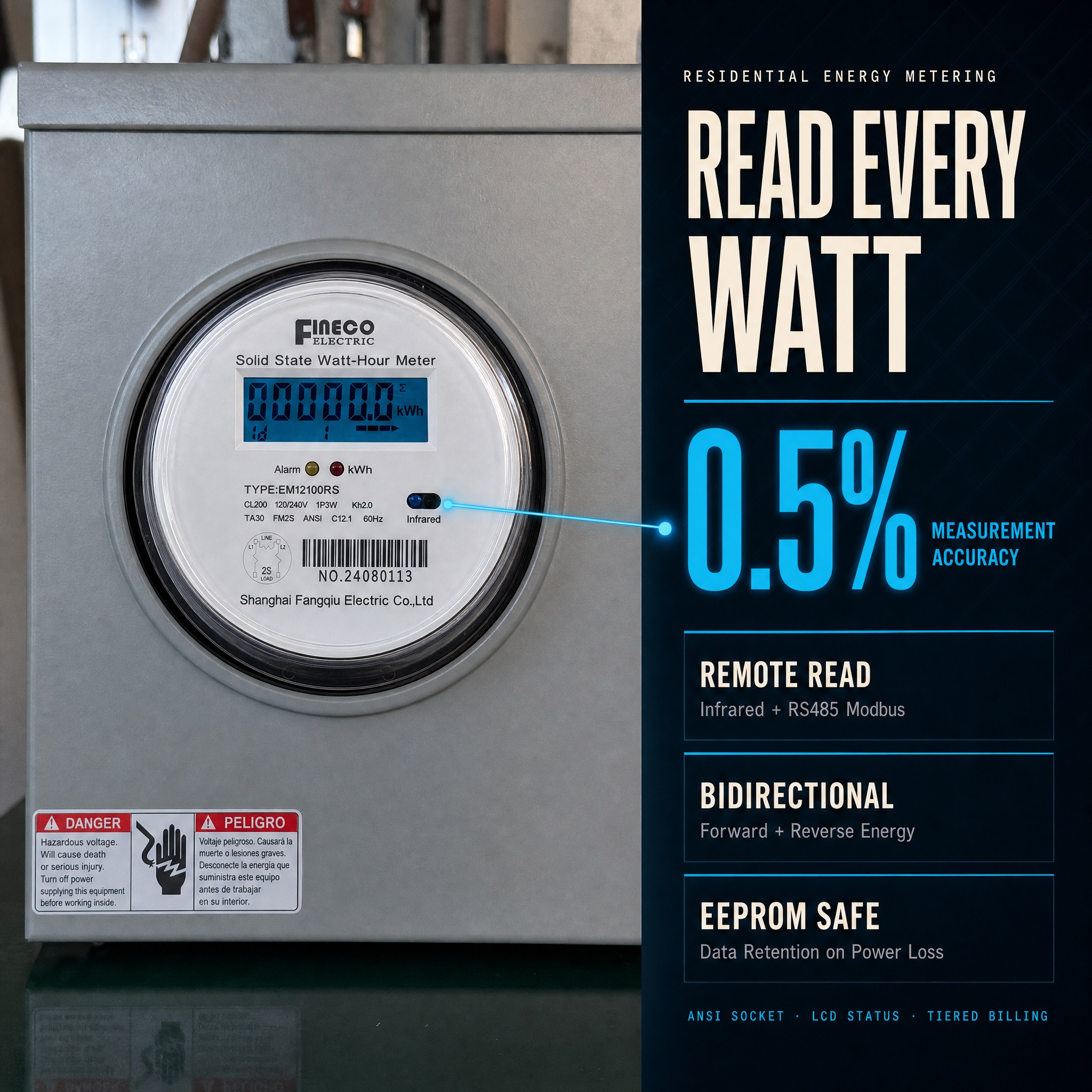

EM12100RS TA15 single PhaseThree wire ANSI 2S smart energy meter
Main Functions and features:

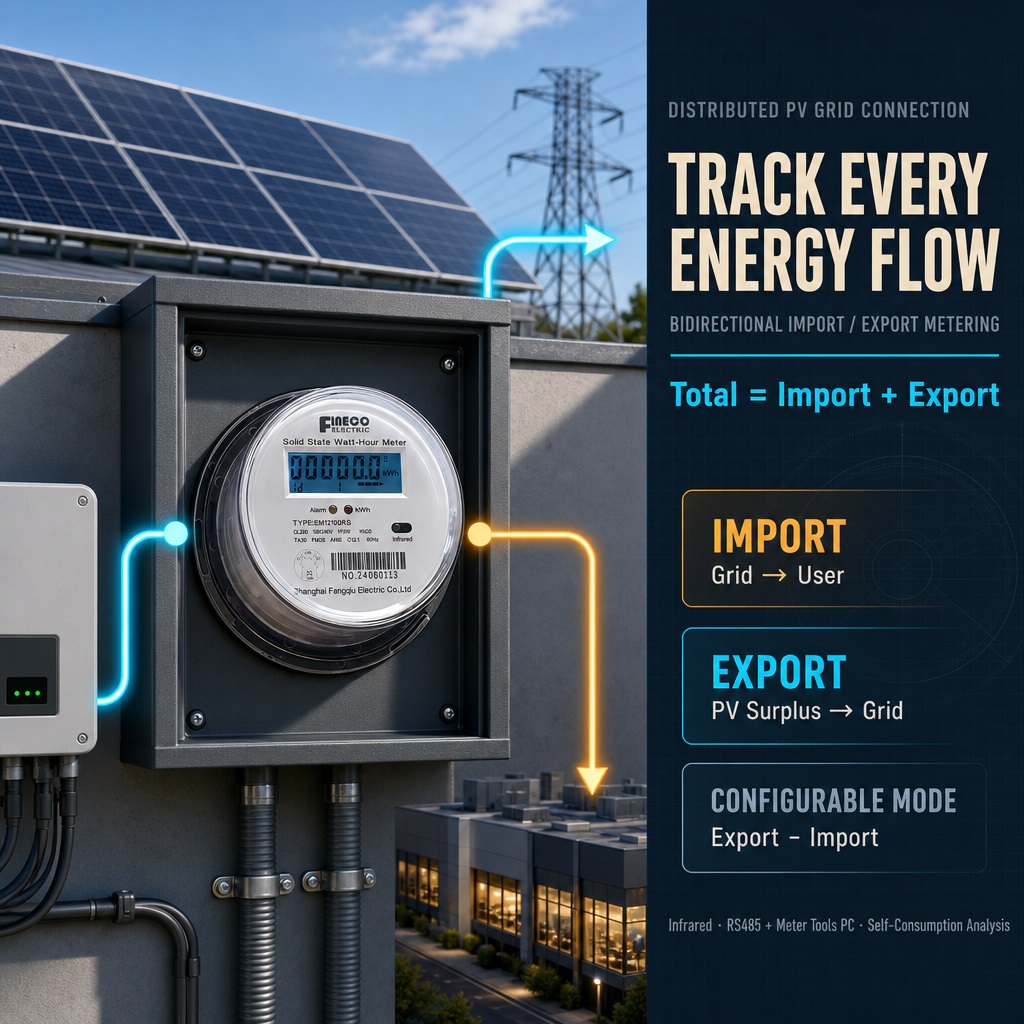

Meter can measure import active energy , export active energy , Bi-directional reactive measuring .
With time-division measurement function, user can store or calculate active and reactive energy according to the time interval of 4 tariffs ( Sharp, peak, Even, valley).
Measuring the date and time of bi-direction and different time maximum demand, also store the data of time scales.Max demand can be
set by slip Frequency, demand interval and slip Frequency time can be setup .
The internal clock circuit of energy meter has time automatic switching function.Calendar, clock and rate can be set and adjustment through RS485, infrared interface.
At least 4 tariffs and 12 time interval can be set within a natural day, min time interval is 15 minutes.
Electricity parameters measurement
Measure record and display voltage, current, active power, reactive power, apparent Power and power factors. error is not more than ±1%.
Data store function
It can store 12 account months of two directions, total active energy data and bi-directional reactive energy data. Data restore time is at 0’clock the end of a month or any day of a month from 1~28 on hour.
It can store 12 account months of two way Max demand and date, time
Summer/winter time switch permit/prohibition
Smart meter provide automatic summer/winter time switch accomplished at 02.00 on the last Sunday of March(forward 1 hours) and at 03:00 on the last Sunday of October(back 1 Hours).
Summer/winter time switch can permit or prohibition by RS485 or IR port.

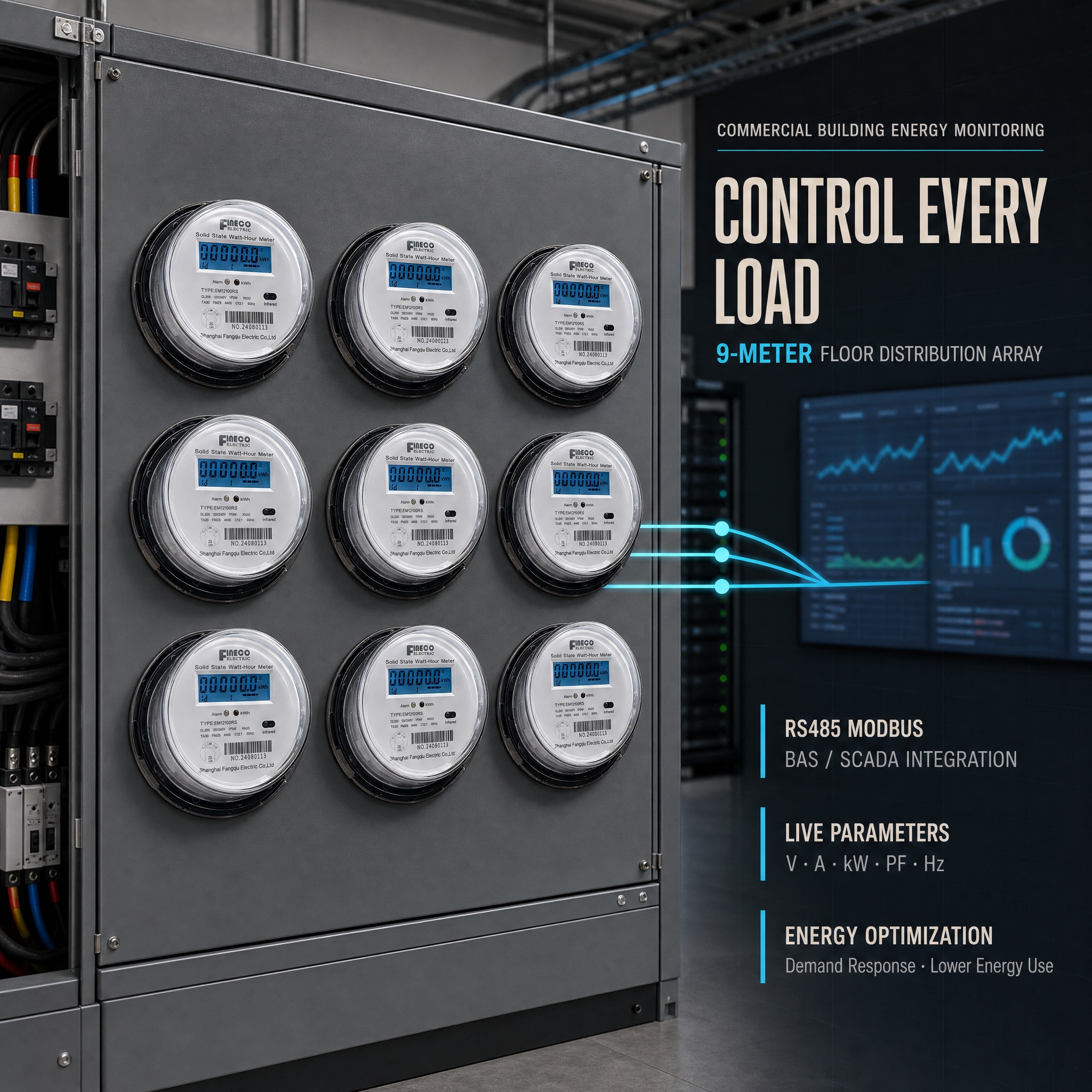

With an infrared COM and a RS485 COM. Its physical layers are independent with each other. One communication channel will not be affected by the other one.Communication protocols fit Modbus RTU standard.RS485 circuit and energy meter internal circuit can realize electricalisolation and failure protection of circuit.
RS485 communications transfer rates allow selected at 1200bps, 2400bps, 4800 bps and 9600bps, default is 9600bps.
Pulse output function
Smart meter is equipped with a pulse output which is fully separated from the inside circuit. That generates pulses in proportion to the measured energy .include the testing pulse output of active energy and reactive energy. 14/ 15 Test pulse output contact (P+/P-),13/ 15 Test pulse output contact (Q+/Q-)
When the meter connect wire wrong example: when current connection is reverse the ALARM led will be on.
