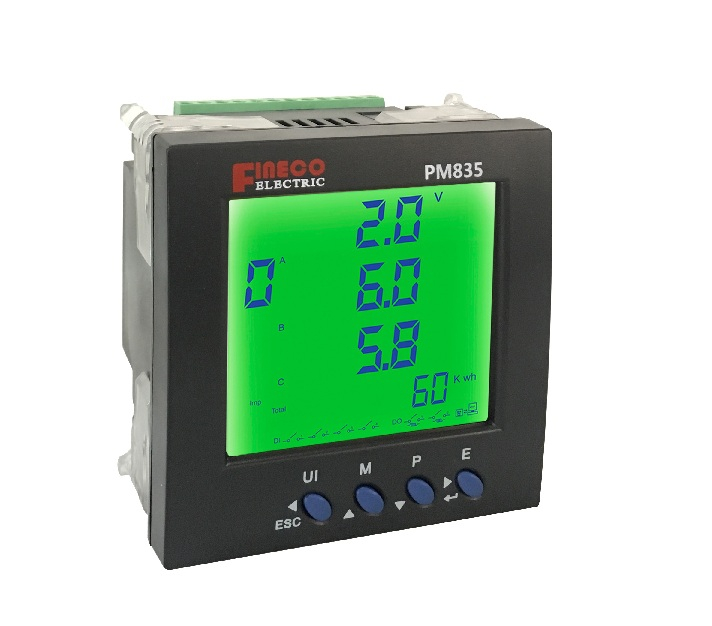

                                PM835 programmable digital panel meter
                  digit power meter panel panel meter in energy meter

●   DIN 96×96 Standard Format

●   True-RMS Measuring Parameter
    Current(per phase,residual,3 phase
    Voltage(L-L,L-N,3-Phase)
    Active power(per phase,3-Phase)
    Reactive power(per phase,3-Phase)
    Apparent Power(per phase,3-Phase)
    Power Factor(per phase,3-Phase)
    Frequency

●   Energy Readings
    Import active energy, export active energy ,total active energy
    Import reactive energy, export reactive energy ,total reactive energy
    Apparent energy

●   Demand Reading
   Demand Current (per phase present, peak,3 phase)
   Demand Voltage(per phase present, peak)
   Demand active power(3 phase present, peak,)
   Demand reactive power(3 phase present, peak,)

●   Power Analysis
   Phase/wire Voltage THD, odd/even THD
   Phase/wire Voltage 2^nd-----60^th Harmonic
   Current  THD, odd/even THD
   Current 2^nd-----60^th Harmonic
   Voltage/current  unbalanced
   Voltage/current sequence component

●   Digital  input /output
    2 independent digital inputs. Use as pulse accumulators or Digital inputs
    2 independent digital outputs. Use as Modbus controlled outputs or Alam output.

●   Communication
   RS485port
   Baud rate: 1200bps～115200bps
   Modbus-RTU protocol

CT specification
   CT specification please browse:

http://www.fineco.cn/Split-Core-Current-Transformer-5A-1A-output-pd6187574.html
