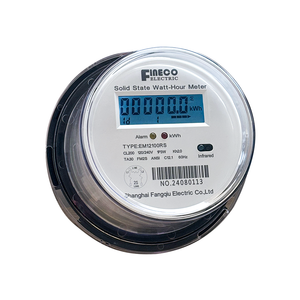

TA15 single phase solid meter ANSI meter socket meter/ 2s meter 1s meter

ANSI meter
Socket meter
1S/2S meter

  • Fineco
  • ANSI 2S ANSI 1S
Quantity:

 TA15 single phase solid meter ANSI meter socket meter/ 2s meter  1s meter
ANSI 1S
ANSI meter
1 phase  3 wire
Voltage: 240V +/- 20%
Current: CL100&CL200
Kh = 1.0Wh  (1000imp/kWh)
Class accuracy= 0.5
Starting Current = 20mA or less
Current transformer response: Linear
From 0.01 TO 100A
CT : With DC  influence
CT 1 PC. desgine
LCD: industrial grade configured in 5 digit with out decimal(0000) minimun digit height 11 mm
With battery backup display always on

Battery life at least 3 years.
Outdoor type application
Option: with IR port for resetting reading and adjusting accuracy.




Voltage(v)

From 1S,120V AC

Operational voltage

70%-130%Un

Frequency

60 Hz ±5%

Service Types

From 1S: 1-phase,2-wire

Current

CL100, TA15A

Start current

10mA

Power consumption of current circuits at TA(VA)

< 1VA

Power consumption of voltage circuits(W)

< 2W

Operational temperature

-25°C to  +60°C

Transport and storage range

-40°C to  +85°C

Humidity

<=95% RH; non-condensing

Timing

±0.5 seconds per day

Accuracy

Current

±0.5%

Voltage

±0.5%

Frequency

±0.1Hz

Active power

±1%

Reactive power

±2%

Data communications

RS485 : Modbus protocol

Modem

Data logging intervals

User-selected at 5,10,15,30,60minutes

Memory back-up

EEprom

Enclosure

ANSI C12.10-2004
