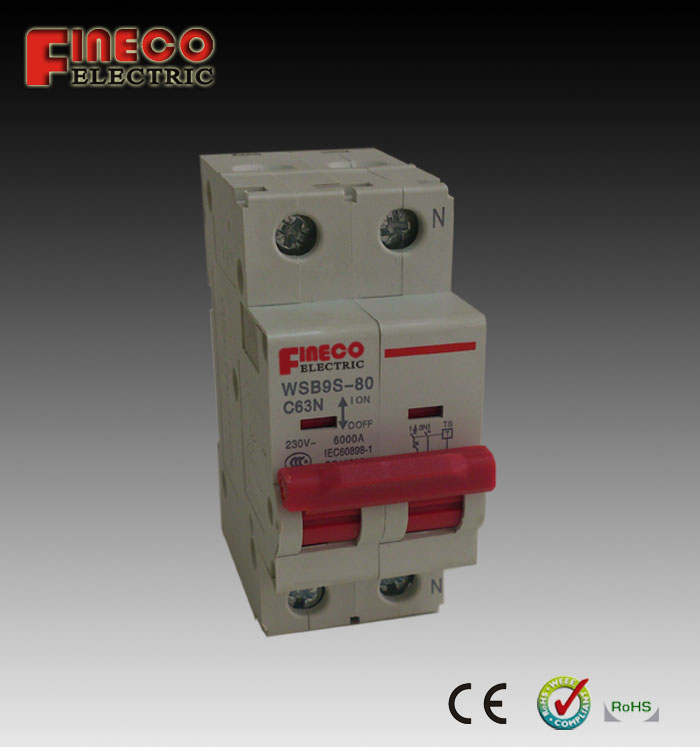

C63-80A Single phase Smart MCB switch used with Prepaid Energy meter

   Model

 WSB9S-80

Stardards

IEC/EN60947-2

Poles

1P+N

Tripping characteristics

C

Rate current In

16…80A

Rate frequency f

50/60Hz

Rate voltage

230V AC

Pollution Degree

3

Short- circuit breaking capacity

6kA

Mechanical data

Housing

Insulation group I,RAL7035

Toggle

Insulation group Ⅱ,black ,seable

Protection degree acc. To EN60259

IP40 in enclosure with cover

Mechanical endurance

20,000 ops

Shock resistance acc. to IEC/EN 60068-2-27

25 g, 2 shocks, 13 ms

Environmental conditions acc. to IEC/EN 60068-2-30

28 cycles with 55 °C/90-96 % and 25 °C/95-100 %

Ambient temperature

-25 ... +55 °C

Storage temperature

-40 ... +70 °C

Dimension and weight

Pole dimension (H*D*W)

91*72*36

Pole weigh

Approx. 300g
