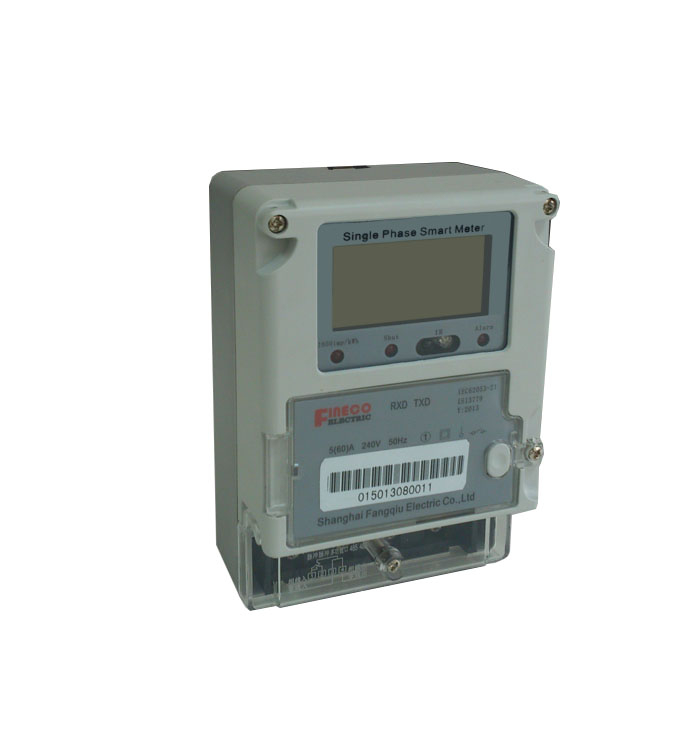

EM18 10(100)A single phase smart meter wireless electricity meter zigbee energy meter rs485 meter

                             EM18 10(100)A single phase smart meter wireless electricity meter
                                          zigbee energy meter rs485 meter



Comfortable IEC62053-21/IS13779
 Meter have two measuring elements(Phase and neutral path)
measures forward, reverse, and net active energy
 Measures kvarh import and export
Accurate to class 1.0 active and reactive energy
Both phase and neutral have 100A relay
 Demand Metering
Tamper Detection &Alarm
Time-of-use Metering, Multi-Tariff up to 8 tariffs
Zigbee module for Neighborhood Area Network
Instantaneous Instrumentation (U/I/P/Q/S/PF/F)
Smart communication port:  RS48/optical Port
Large-character, auto-scrolling, 8-digit LCD display
Programmable display list with adjustable scroll rate.
Pulse output LED to represent  energy.
CE approval

Measuring function:

Meter have two measuring elements - one in phase and other in neutral path. Meter can measure import & export active energy , import & export reactive energy. The measurement type can be set.

Display function

 Meter have two status: cycle display status and button press display . When pressing the button, User can set according their request. Button press will Backlight the LCD. Display cycle can be set within 5~20 seconds, The default is 5 seconds.

Electricity parameters measurement and monitoring

Measure record and display voltage, current, power and power factors. error is not more than ±1%.Provide out of limit monitoring capability,  Voltage, Current, Power factor can be setup the limit value and monitoring.

Load Profile function

60 days data to be recorded with 15 minutes integration period for kWH, kVArH (lag) kVArH (lead), Average Voltage, Average Current, Power Factor, Frequency.

Time of Use function

support 8 tariff registers / 12 time zones per day can be remotely programmable (OTA) for the changing values, currency etc.

Tamper/Event recording function

A total of last 50 events considering all tampers defined must be detected and logged as tamper events on first in first out basis along with date & time of occurrence and restoration, total tamper counts with tamper identification. Snapshot of kWh, V and I shall be recorded along with the following tamper events.

Cover open detection – First instance

phase and neutral are interchanged

Neutral disturbance

Magnetic Interference

Missing Potential

Alarm function

Alarm for power on/off, Under Voltage, Over Voltage, Over Current, Mal functioning of relay

Load Control

Relay for connection/disconnection Phase and Neutral Disconnection on the following conditions:

i)              Over current

ii)             Load Control Limit

iii)     Disconnect signal from Utility Control Centre

Communication function

Optical / RS 485 will be provided for local communication. In addition to this the meter will have a provision for a built in zigbee Module for NAN (Neighborhood Area Network)
