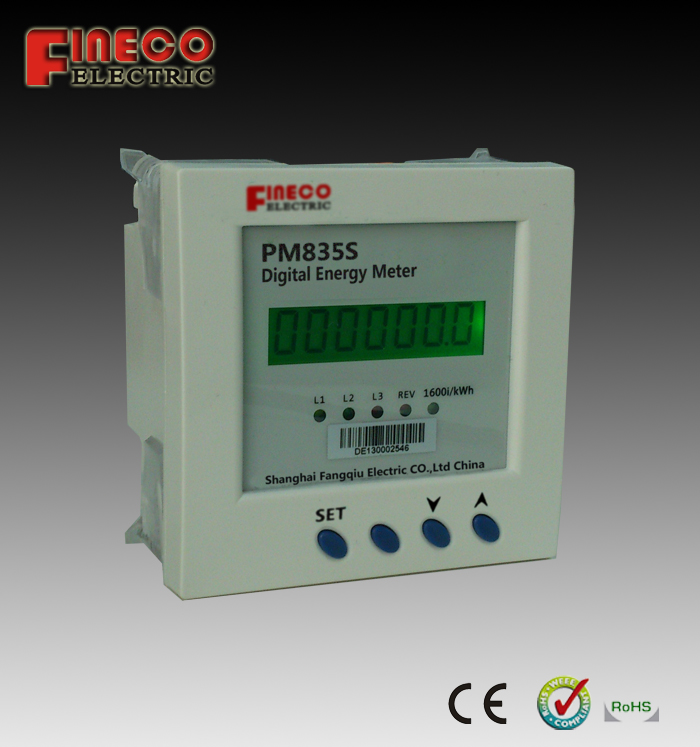

                                PM835 programmable digital panel meter
                  digit power meter panel panel meter in energy meter





  Benefits and Main Features

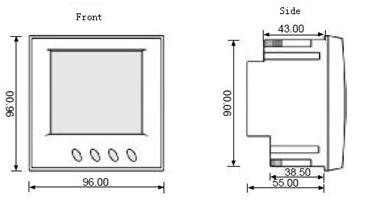

     DIN 96×96 Standard Format
          CI.1 Accuracy (EN50470)
     Energy consumption LED
     Current reverse LED
     Phase L1/L2/L3 LED
     Isolate pulse output and IR (DIN43864)
          LCD display, 6 integer 1 decimal
     Large clear backlight display
     27 CT rate can be selected
     Memory back-up (EEprom)
   Communication
     RS485port
     Baud rate: 1200bps～9600bps
     Modbus-RTU protocol

Function:
 Voltage Inputs
• 20-280 Volts Line To Neutral, 20-480 Volts Line to Line
• Universal Voltage Input
• Input Withstand Capability – Meets IEEE C37.90.1 (Surge Withstand Capability)

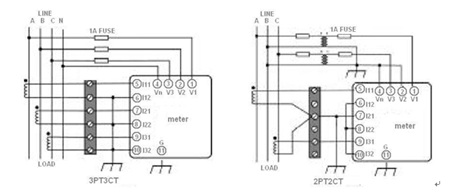

• Supports: 3 phase 4 wires, 400/230V, 110/63V,208/120V
• Input wire gauge max (AWG 12 / 2.5mm²)

Current Inputs
• Class : (0 to 6) A, 5 Amp Nominal
• Fault Current Withstand: 100 Amps for 10 Seconds, 360 Amps for 3 Seconds, 600 Amps for 1 Second.
• Programmable Current to 27 CT Ratio
• Burden 0.005VA per phase Max at 11Amps
• 5mA Pickup Current
• Pass through wire gauge dimension: 0.177" / 4.5mm
• Continuous current withstand: 20 amps for screw terminated or pass through current connections

Isolation
All Inputs and Outputs are galvanic ally isolated to 4000 Volts AC.

Environmental Rating
Storage: (-25 to +70)° C
Operating: (-10 to +65)° C
Humidity: to 75% RH Non-Condensing
Faceplate Rating: NEMA12 (Water Resistant)
Environment : IP54 standard, IP65 optional

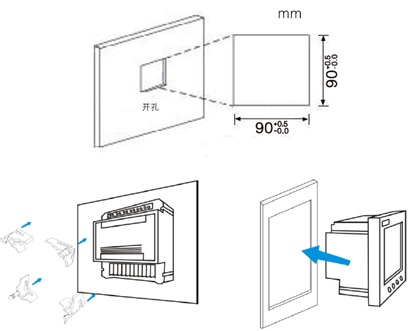

Mounting Gasket Included

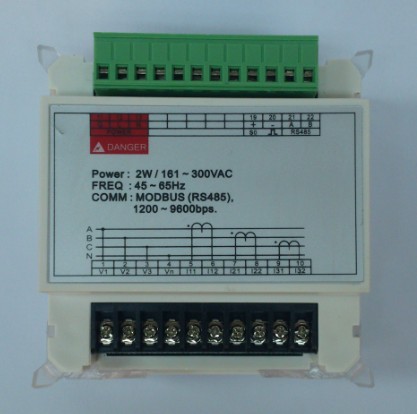

Power Supply
• 161 to 300 Volts AC

Communication Format
• 1 Com Ports
• RS485 Port (Through Back Plate)
• Com Port Baud Rate: (1200 to 9600)
• Com Port Address: 0-247
• 8 Bit, Even parity
• Modbus RTU Protocols

Pulse output
• Pulse constant: 1600imp/kWh
• pulse width:80ms±20ms
