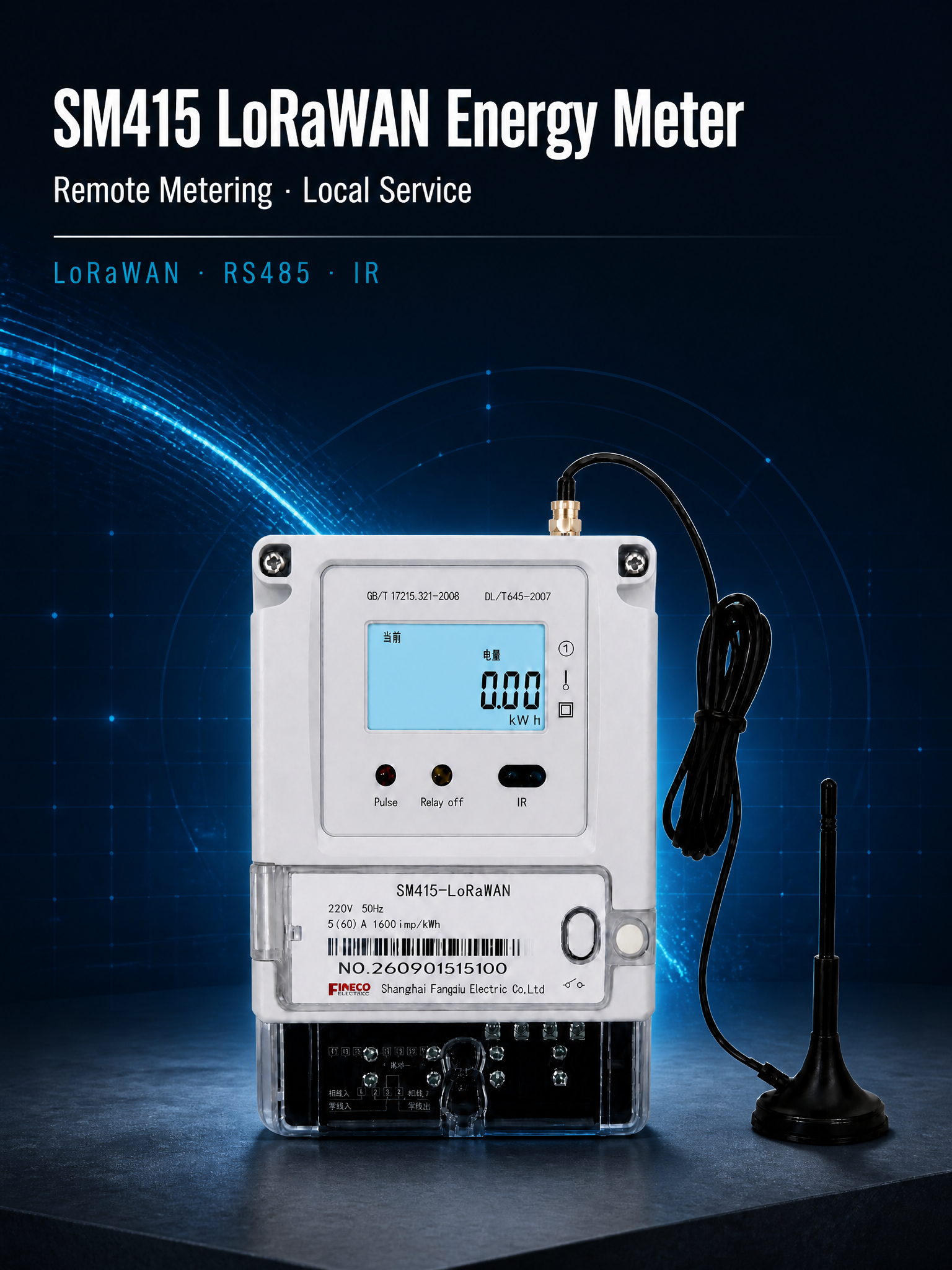

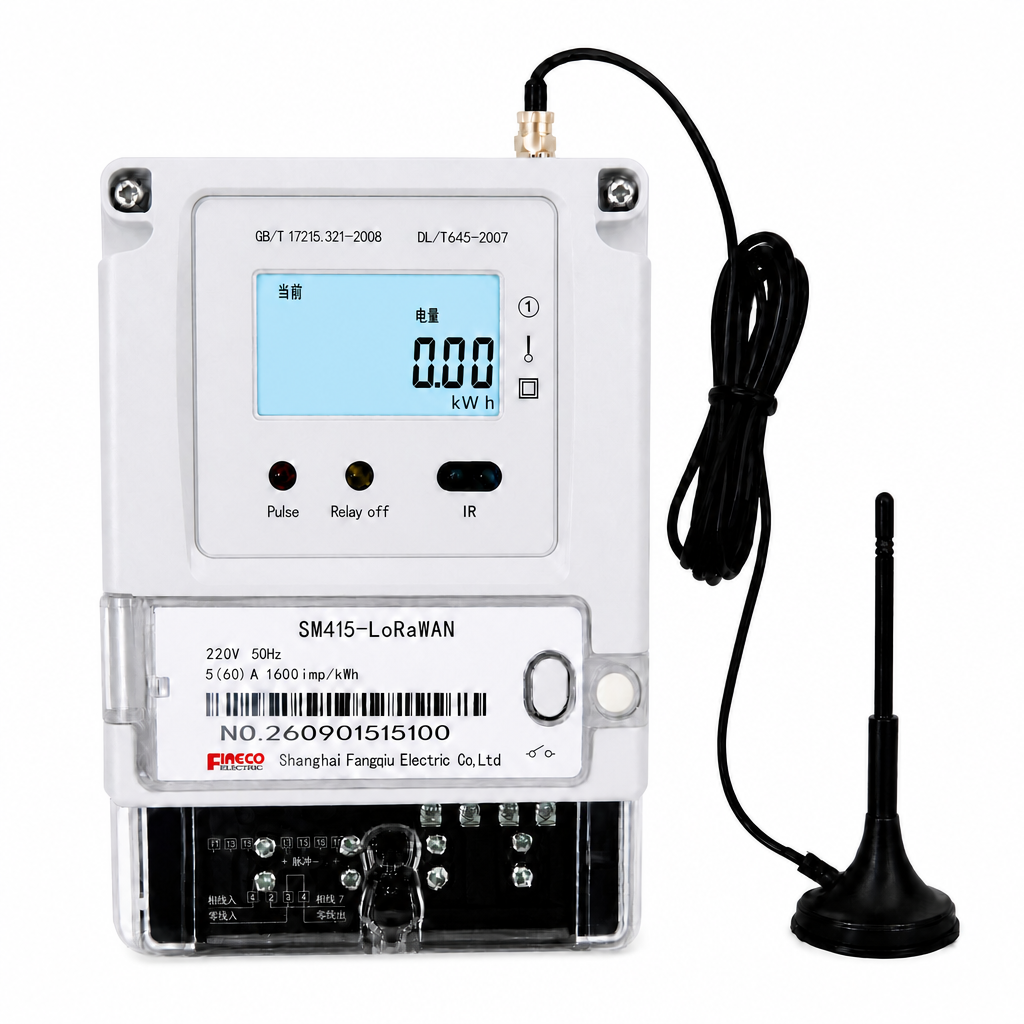

SM415 LoRaWAN Single Phase Energy Meter 220V 5(60)A, Remote Relay On/Off, Wireless Meter Reading, Overload Trip, RS485 Modbus DL/T64

Share to:

SM415 LoRaWAN Single Phase Energy Meter 220V 5(60)A, Remote Relay On/Off, Wireless Meter Reading, Overload Trip, RS485 Modbus DL/T64

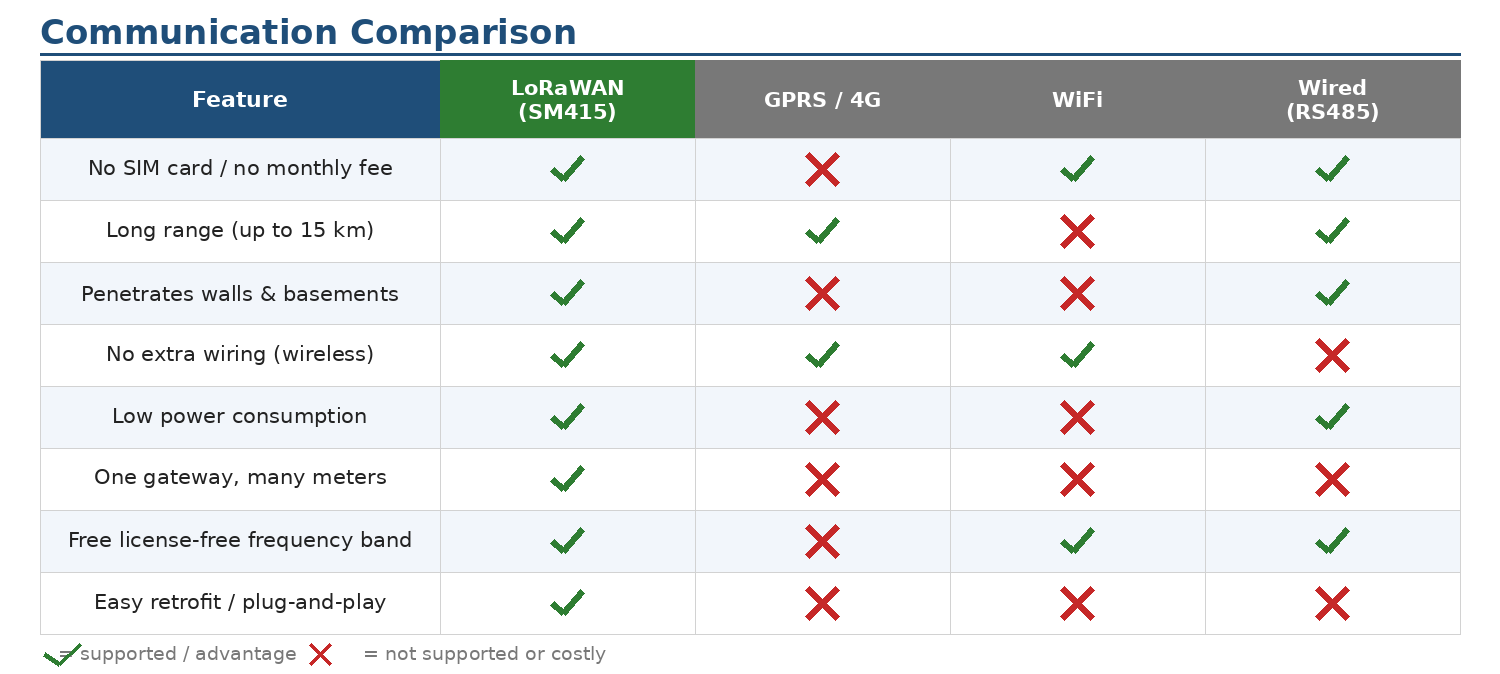

Wireless by LoRaWAN – No WiFi, no SIM card

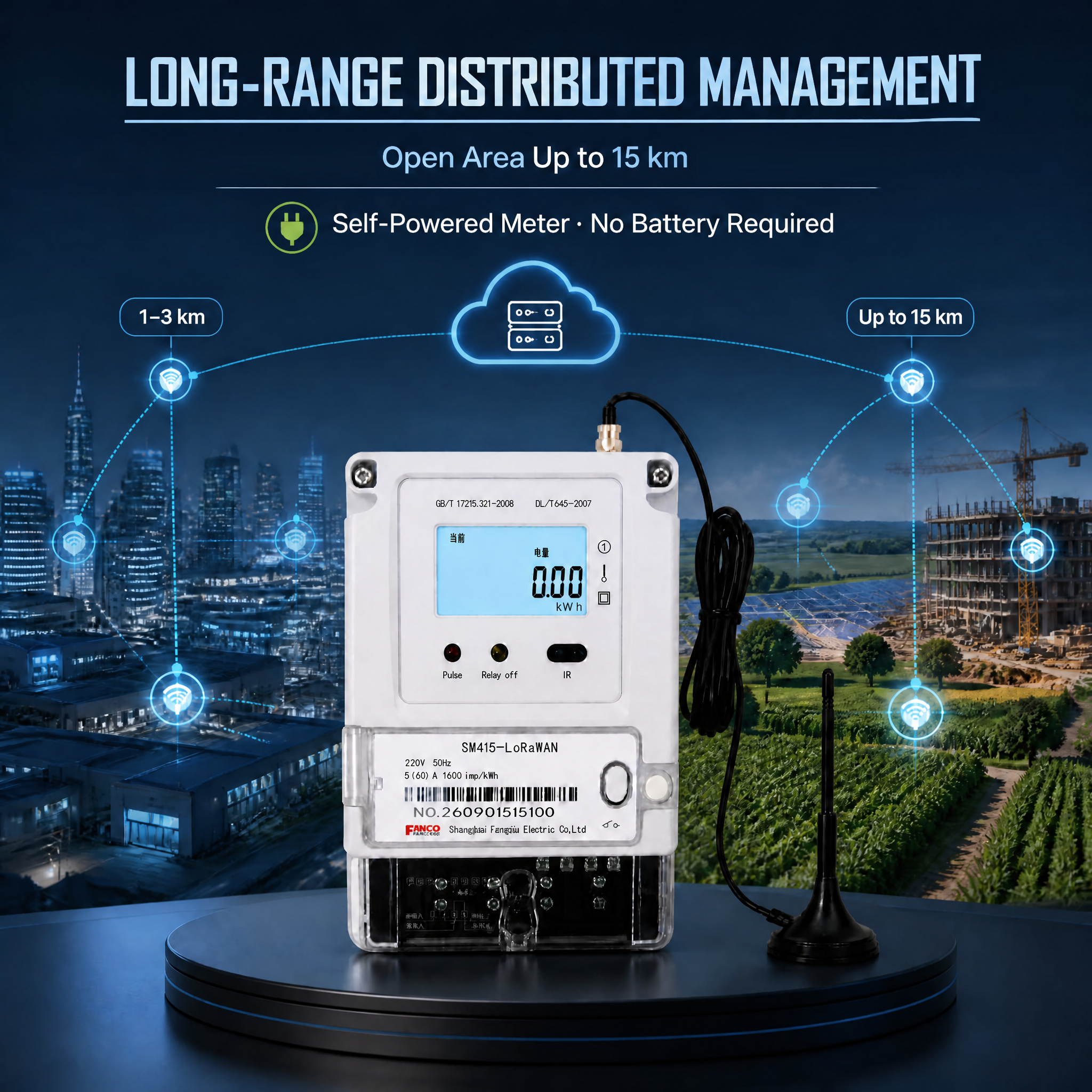

Long range – up to 15 km line-of-sight, 3 km urban
Penetrates walls & basements – perfect for challenging environments
Lowest total cost of ownership – zero recurring communication fees
Plug-and-play deployment – mount, wire, and go online in minutes

Model:
SM415
Brand:
Fineco
Code:
SM415

Type:	5(60)A 10(80)A
Availability:

Quantity:



Inquire Add to Basket

SM415 LoRaWAN Single Phase Energy Meter 220V 5(60)A, remote Relay On/Off

Wireless Meter Reading, Overload Trip, RS485 Modbus DL/T64

Overview:

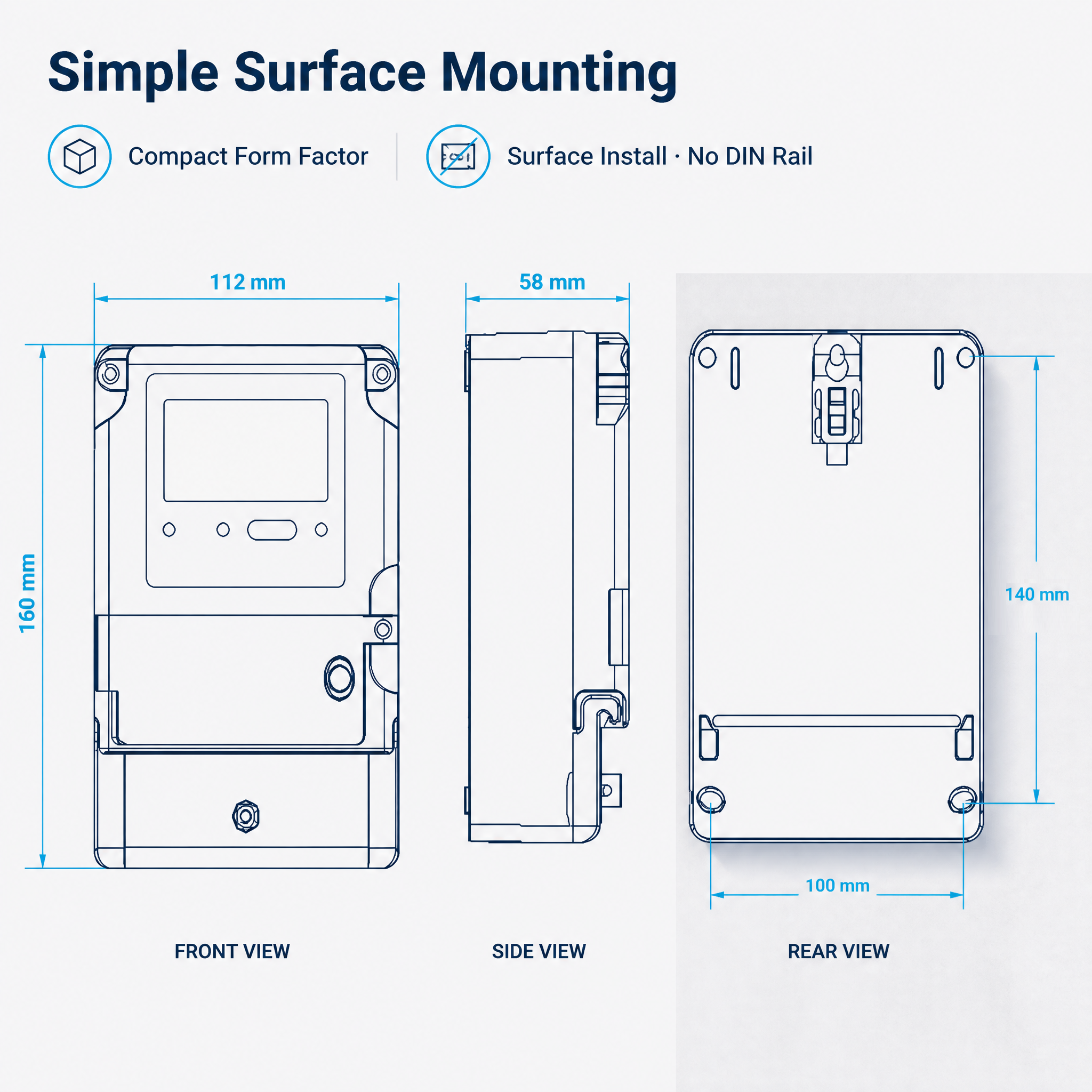

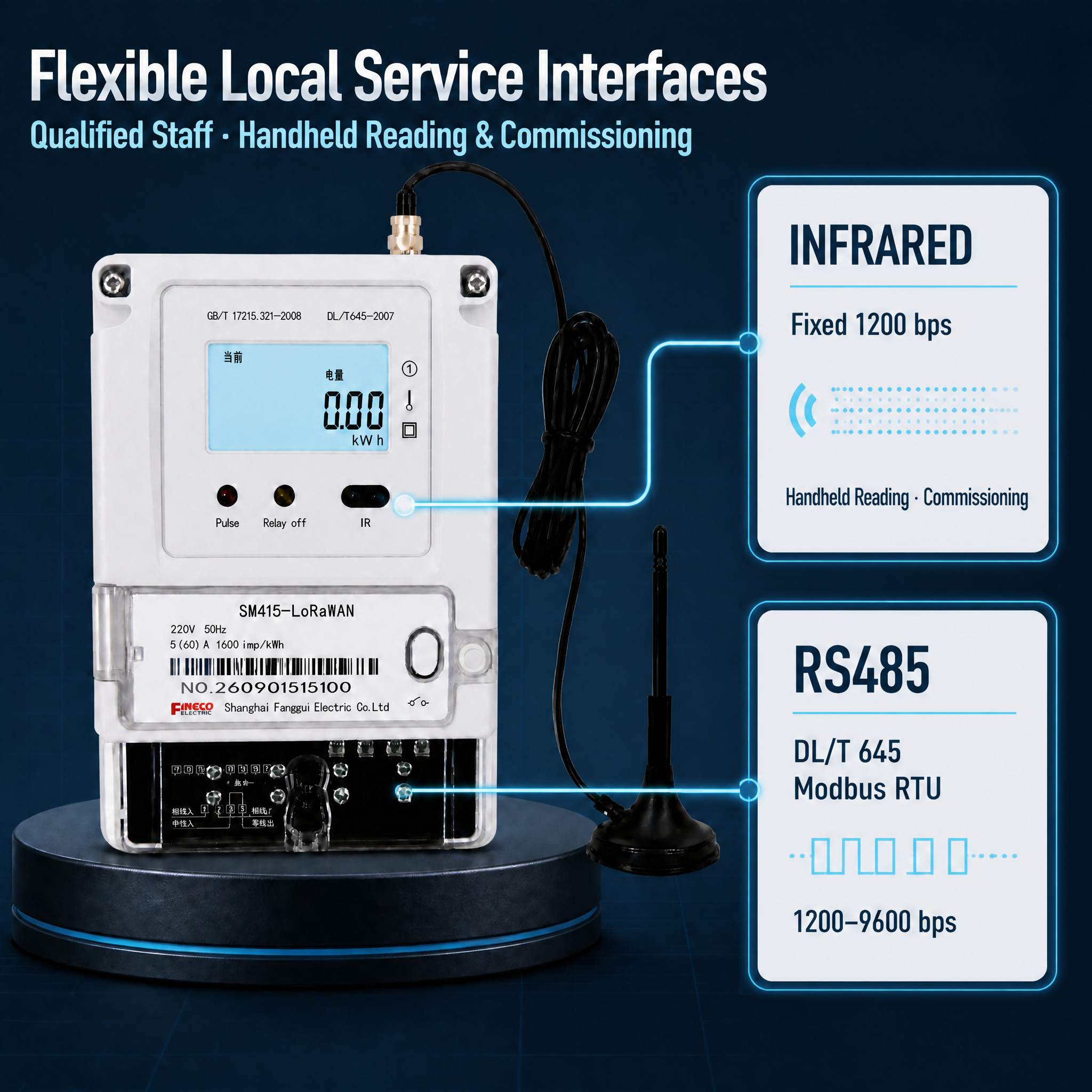

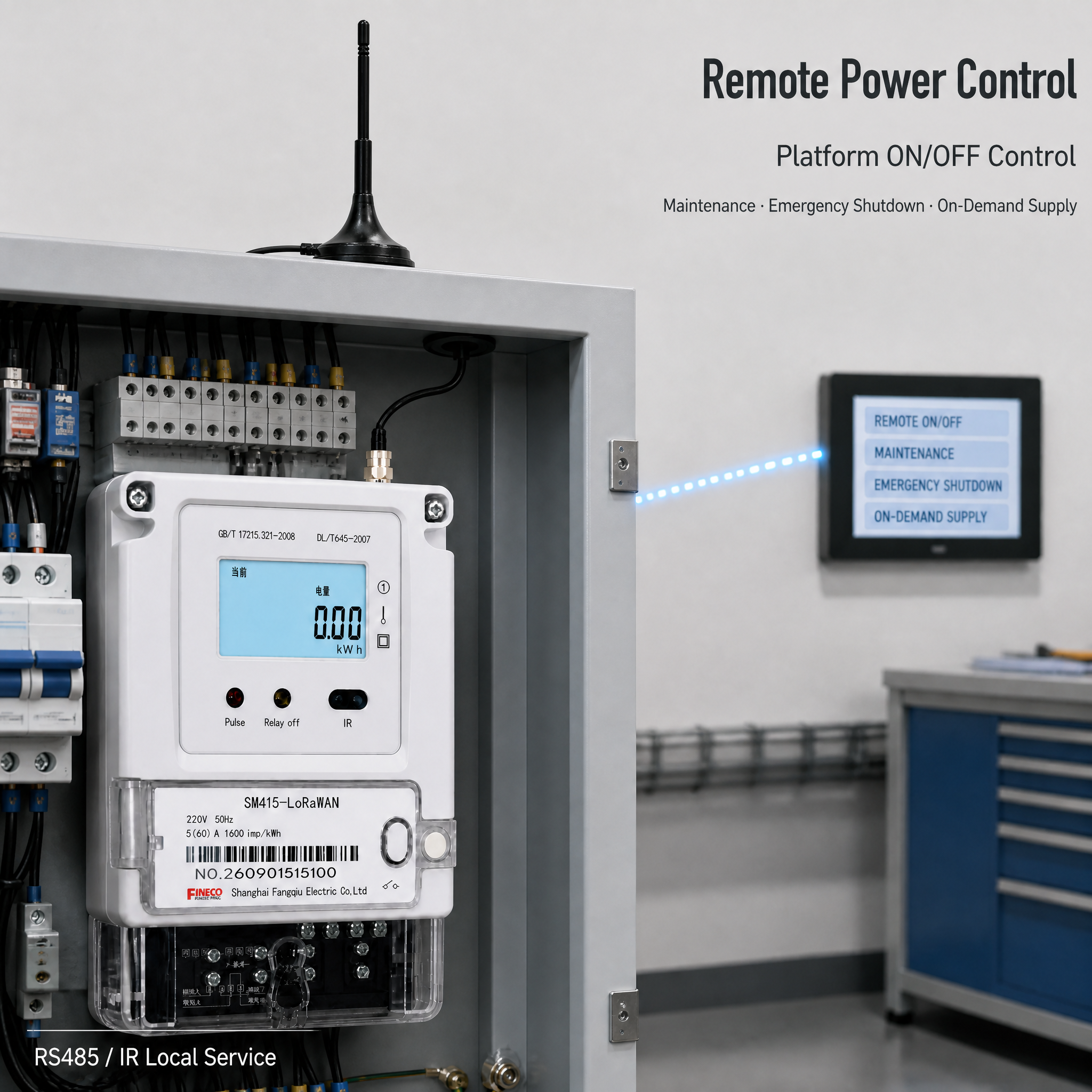

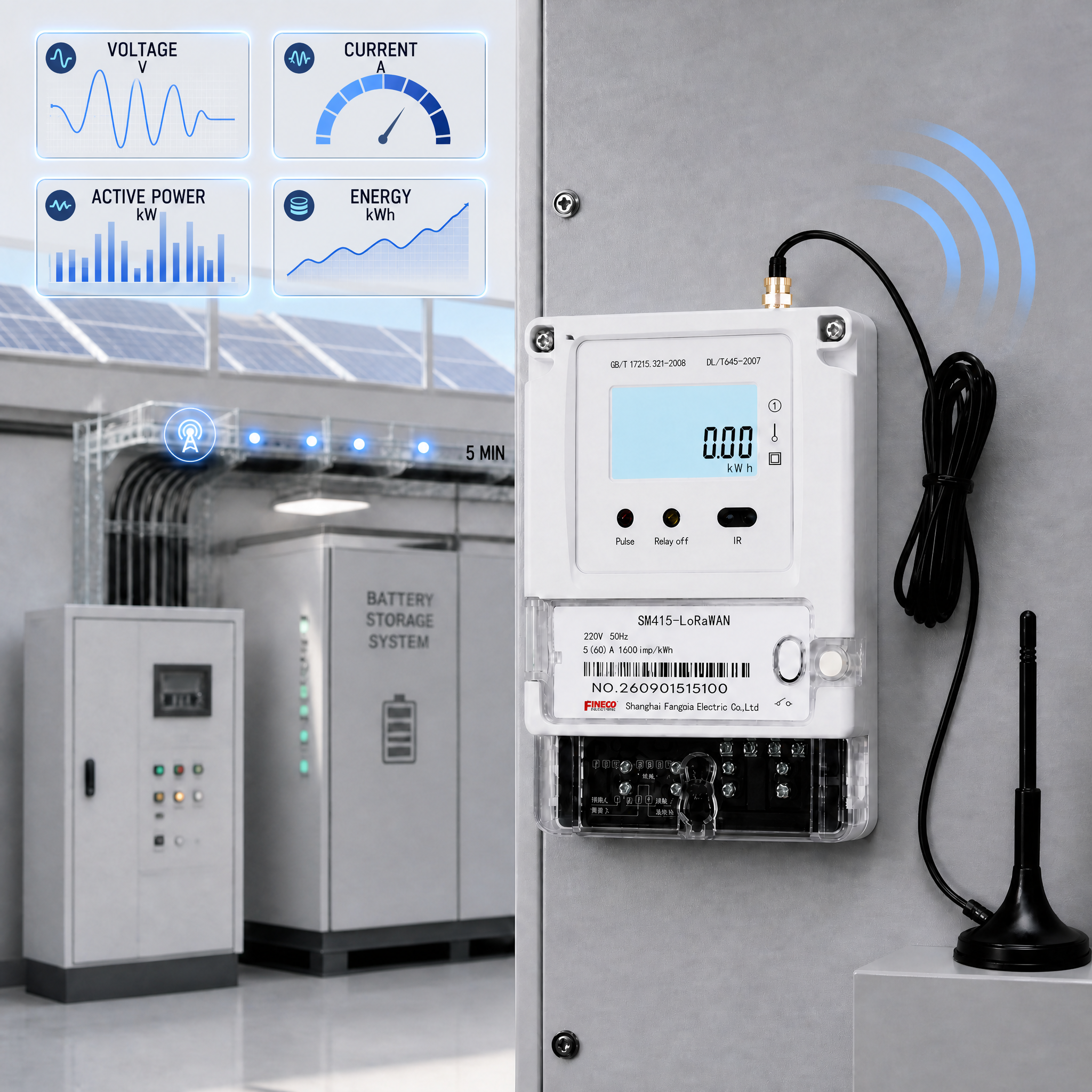

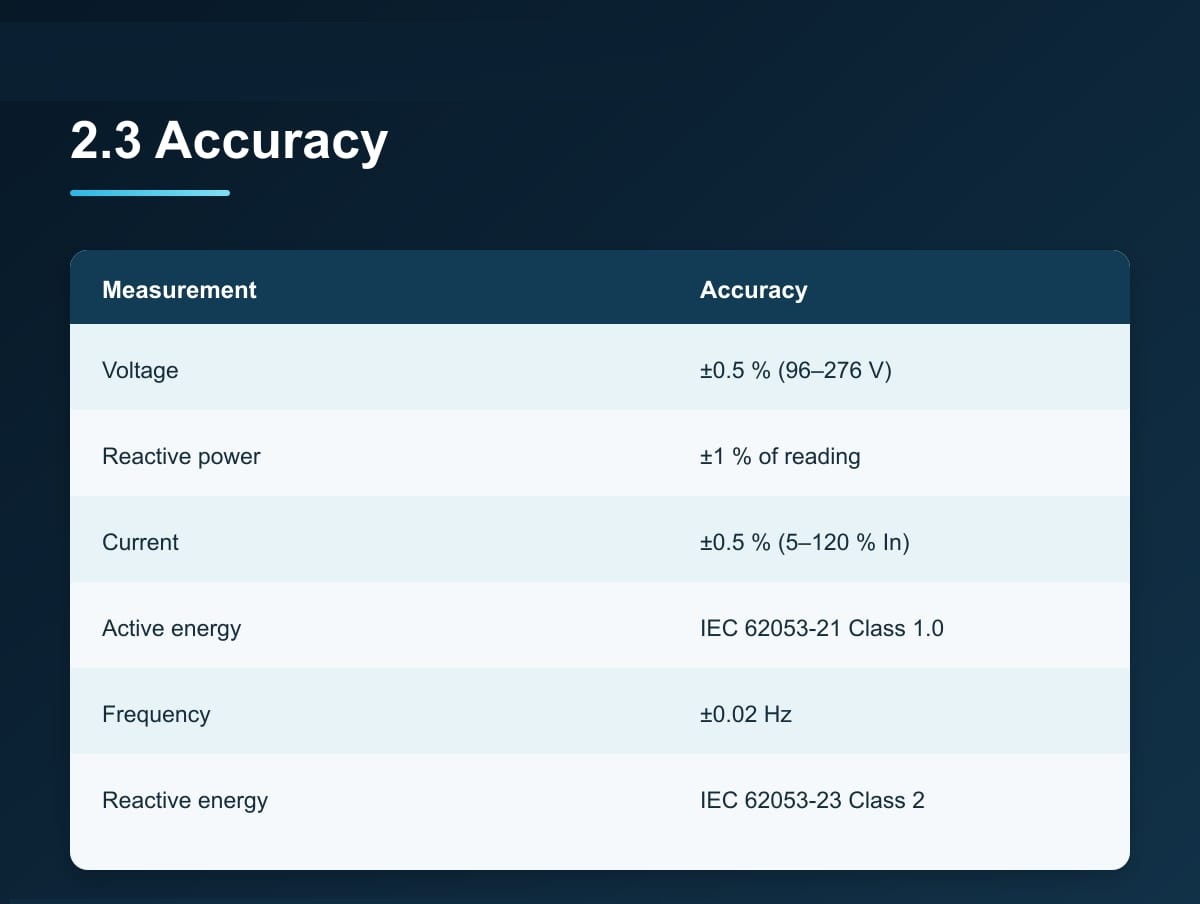

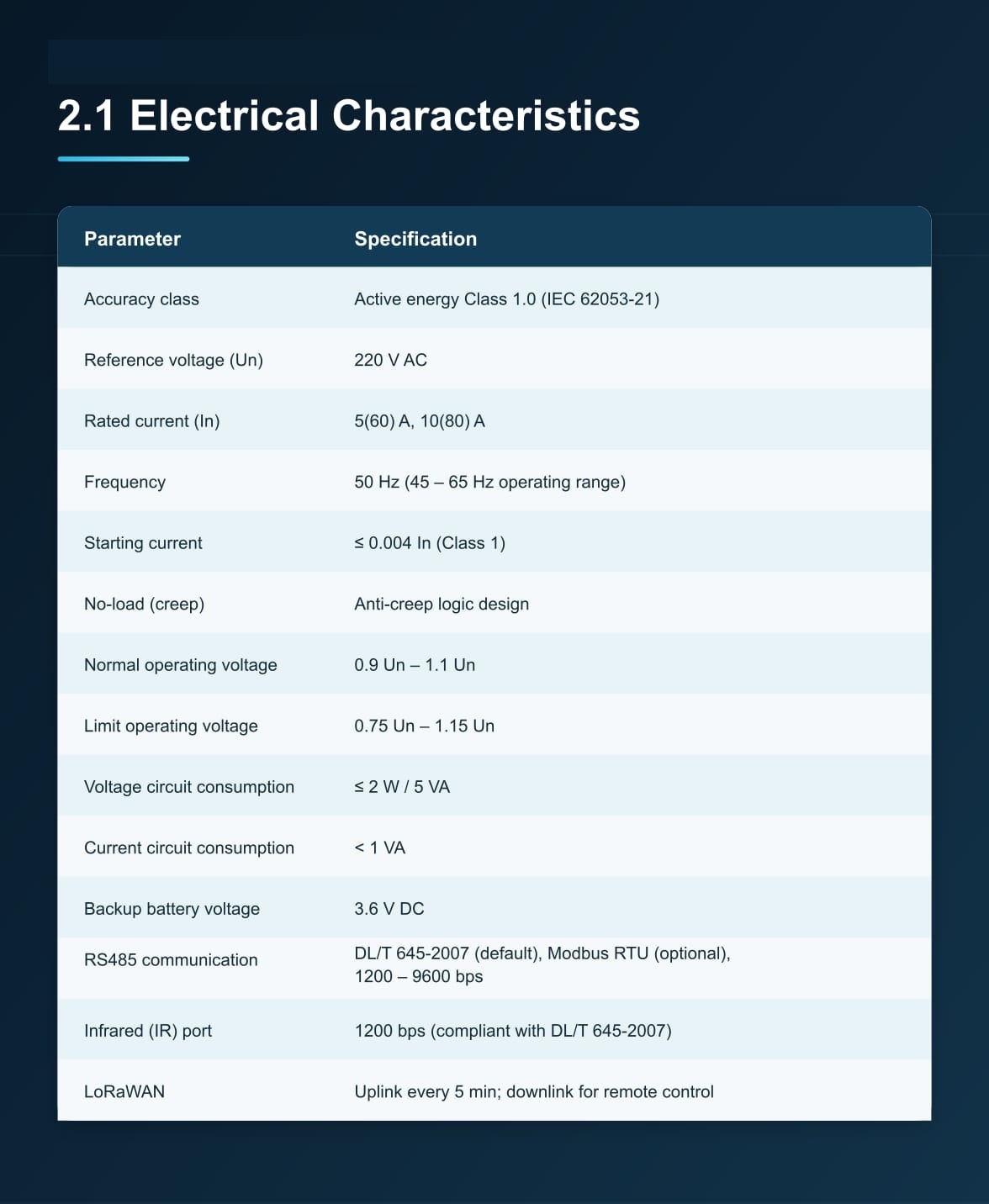

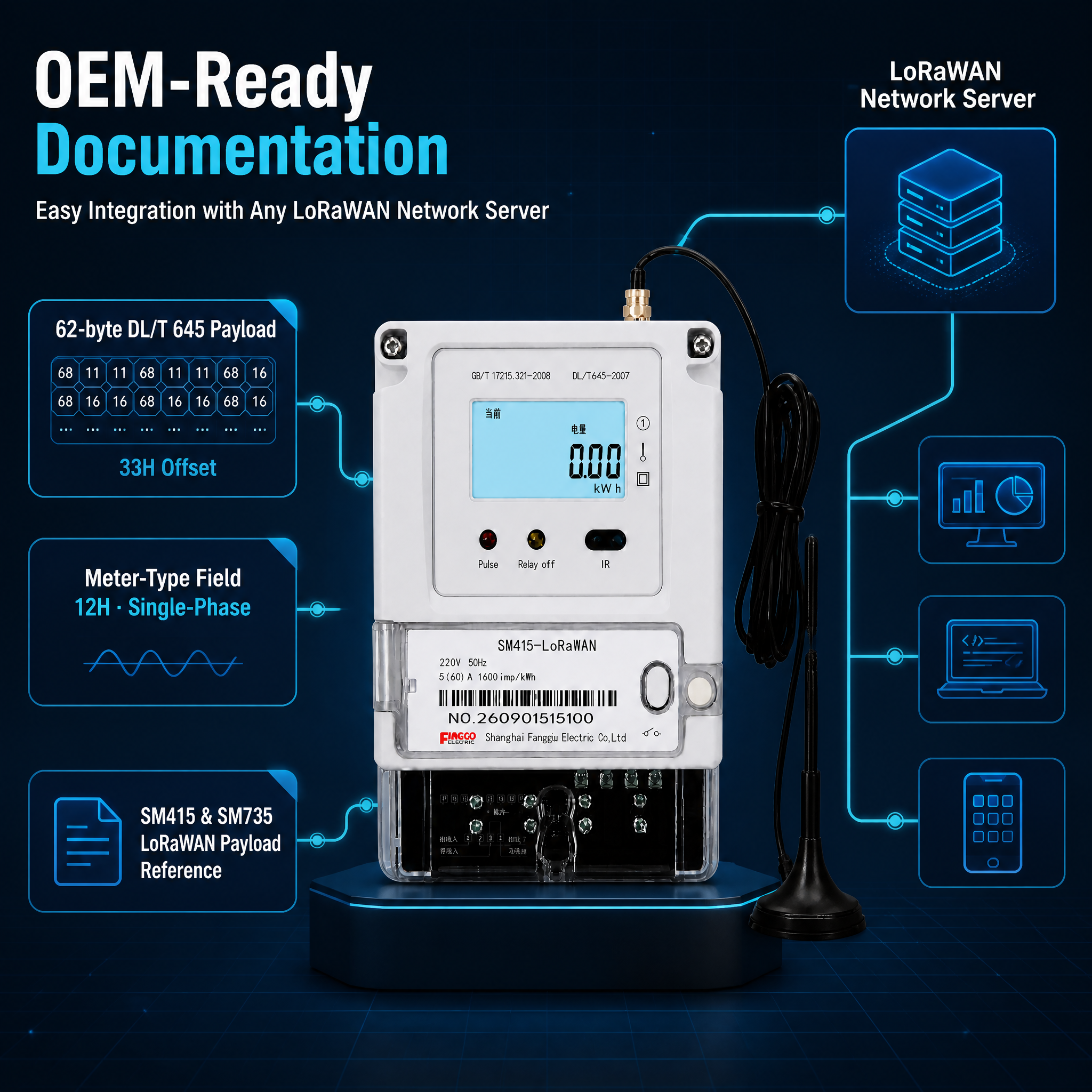

The SM415 is a single-phase LoRaWAN smart kWh meter (Class 1.0, IEC 62053-21) that eliminates SIM cards, monthly fees, and cabling. It automatically reports energy, voltage, current, power, PF, and frequency every 5 minutes via long-range LoRaWAN (up to 15 km) with excellent wall/basement penetration. One gateway can connect hundreds of meters, drastically cutting infrastructure cost. The remote relay ON/OFF enables platform-based disconnect/reconnect, while built-in overload protection triggers auto-trip. Local RS485 (DL/T645 & Modbus RTU) and infrared port support field maintenance. Compact surface-mount design, tamper-proof seal, wide temperature range (–20°C to +50°C). Ideal for apartments, commercial submetering, dormitories, and industrial parks requiring wireless AMR with remote control. Perfect for retrofitting existing buildings without rewiring.

Application:

Product description:

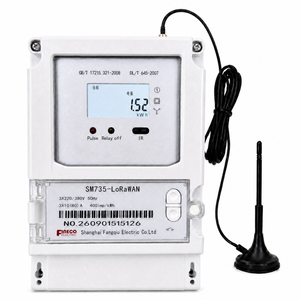

SM735 Three-Phase LoRaWAN Smart Energy Meter, Class 1.0, 3×220/380V, Platform Remote Open/Close Relay, 5-Min Uplink, RS485 DL/T645 Modbus, LCD
