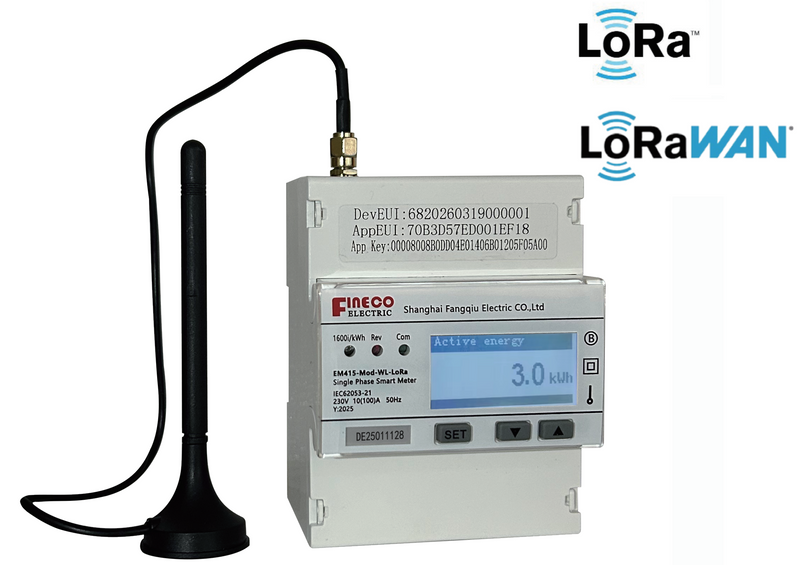

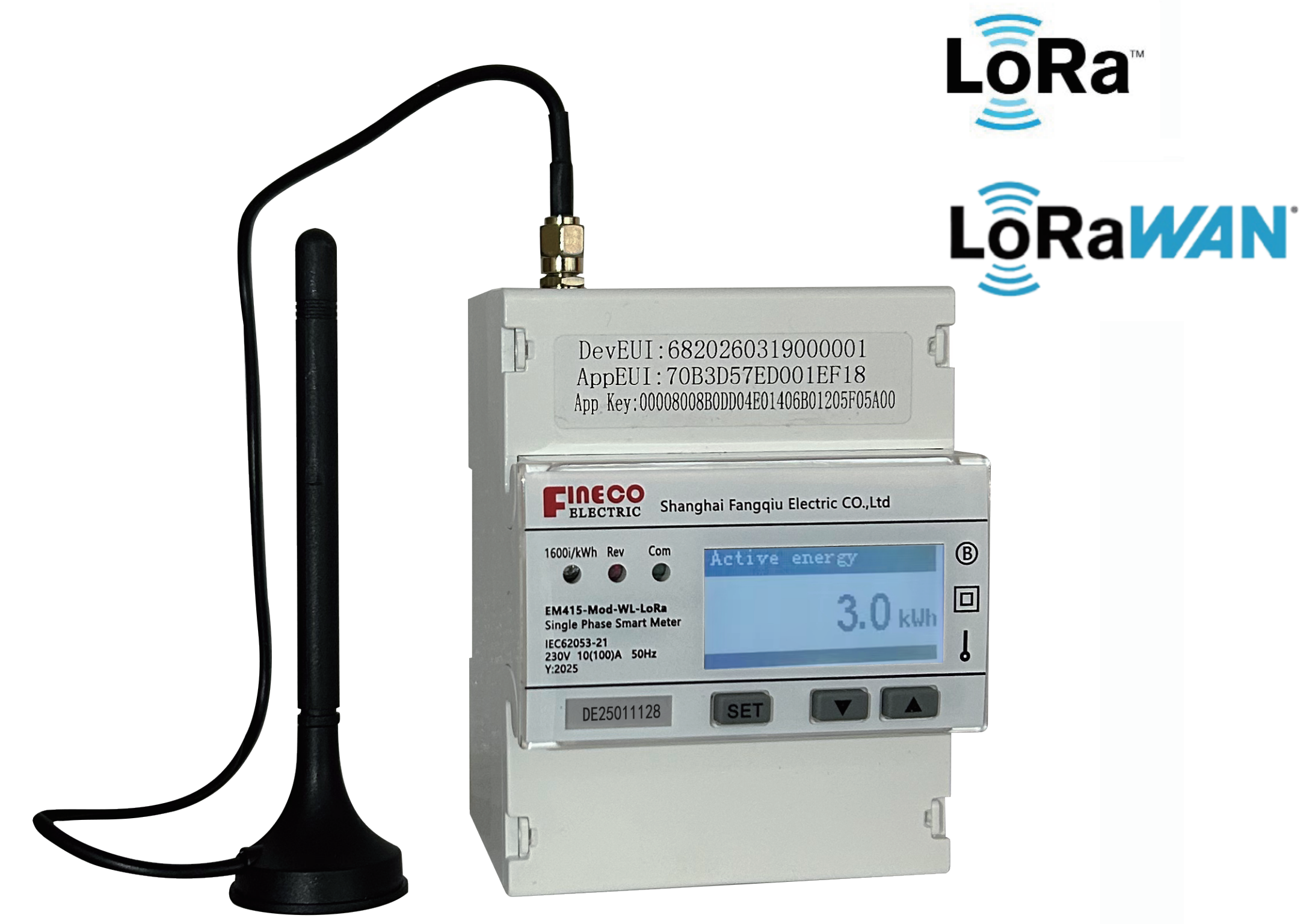

EM415-Mod-WL single phase~100A~Modbus~LoRa

                              EM415-Mod-WL 10(100)A 128*64 pixel Graphic display

                       single phase energy meter with LoRa/loraWAN wireless communication

Overview

   The EM415-MOD-WL is a 4‑module single‑phase smart energy meter capable of measuring currents of up to 100 A. Its measurement accuracy fully complies with Class B of EN 50470‑3 and Class 1 of IEC 62053‑21.Featuring a 128 × 64 dot‑matrix LCD, the meter provides a visually clear and intuitive display of real‑time electrical parameters, including mains voltage, current, active power (kW), power factor (PF), and mains frequency (F).

  The unit supports both wired RS‑485 and wireless LoRa/LoRaWAN communication, offering flexible integration options. Available LoRaWAN frequency bands enable global deployment, covering EU868, AS923, CN433, CN470, AU915, and US902 MHz variants.
