EM4372 5(65)A three phase ~ 65A ~Modbus ~ Smart Power analyzer

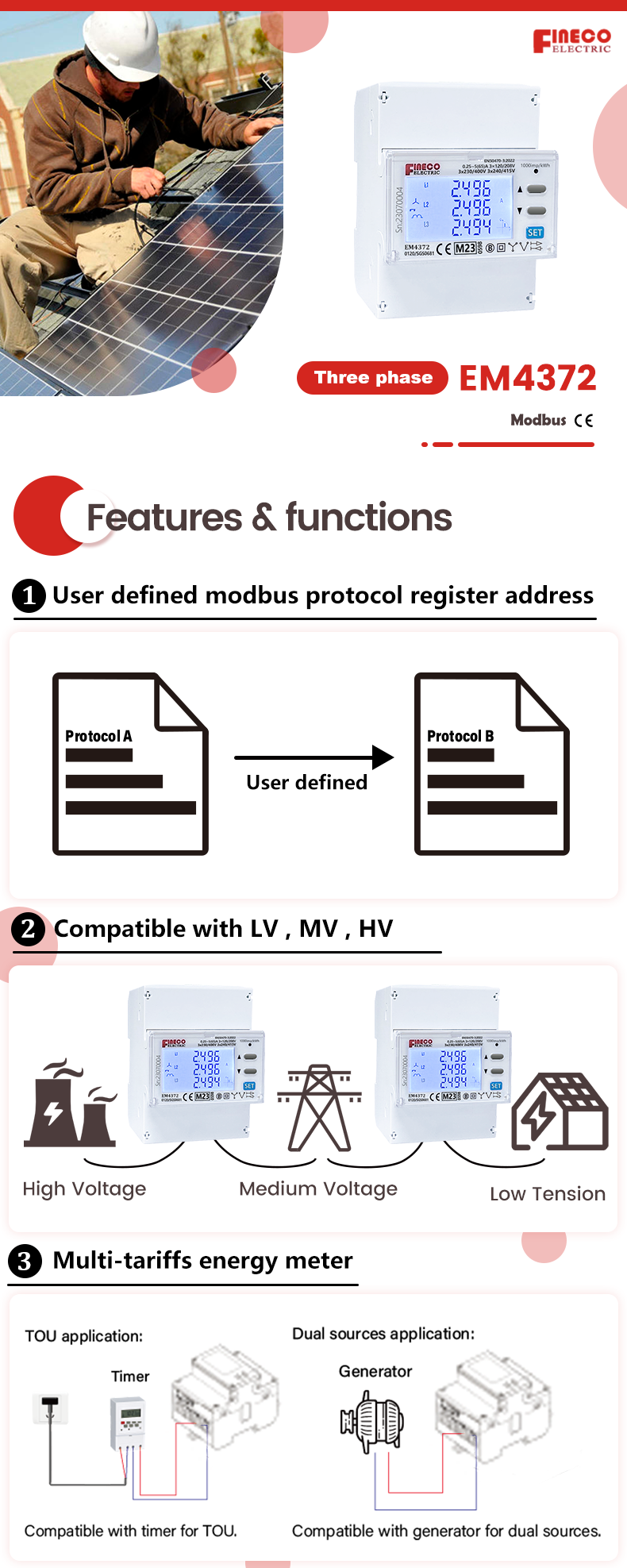

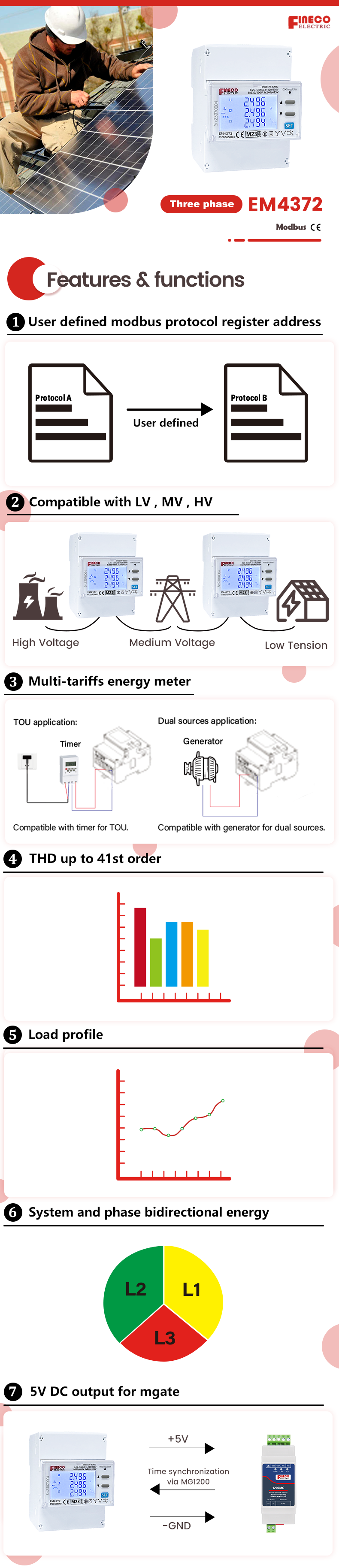

● Compatible with LV,MV,HV applications
● System wiring method Y/Δ, Voltage L-L from 208V up to 415V
● More than 300 electrical parameters measured and displayed

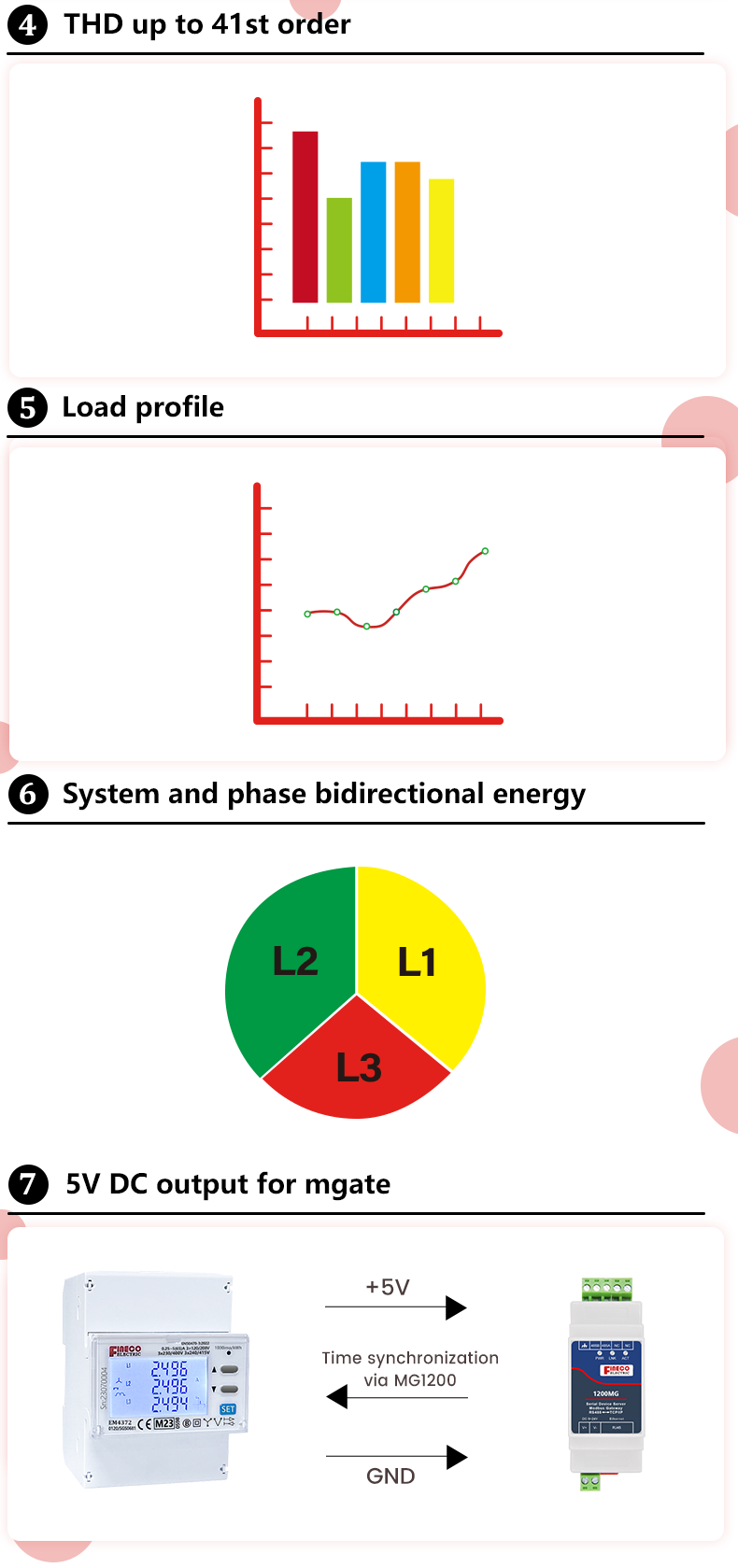

● Harmonic analysis of voltage and current up to 41st order
● Voltage Asymmetry (Phase-Phase, Phase-Neural),Current Asymmetry
● Phase sequence indication

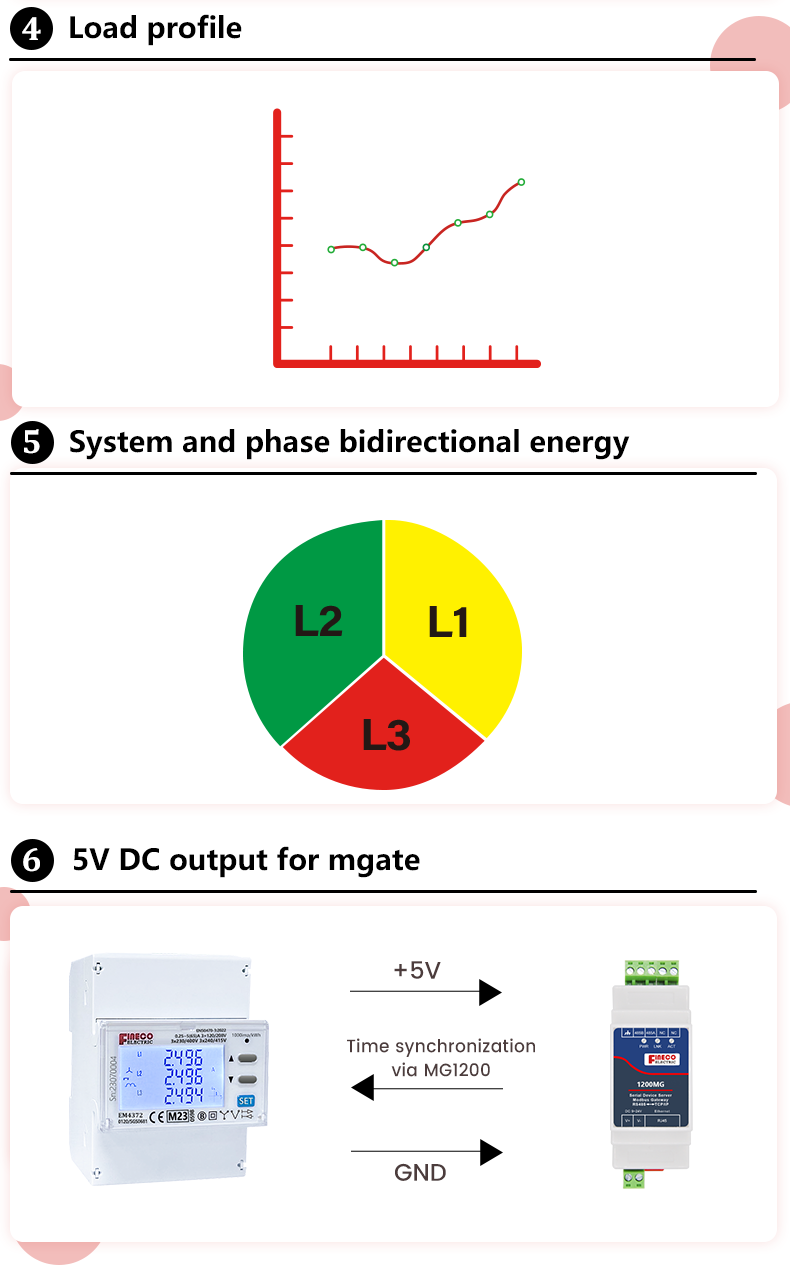

● System and phase bidirectional energy
● Load survey/profile, interval programmable

Model:
EM4372
Brand:
Fineco
Code:
EM4372

Availability:

Quantity:



Inquire Add to Basket

Product Description

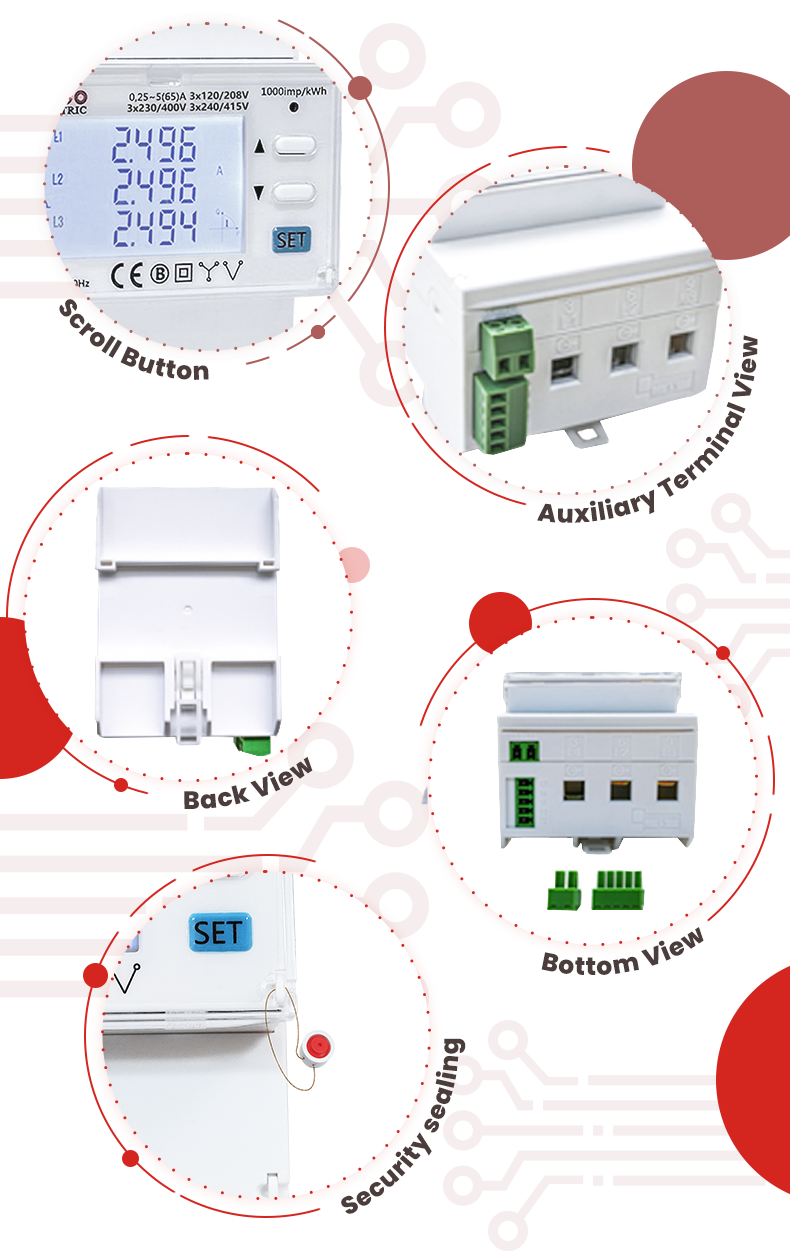

EM4372 5(65)A three phase Modbus Smart Power analyzer

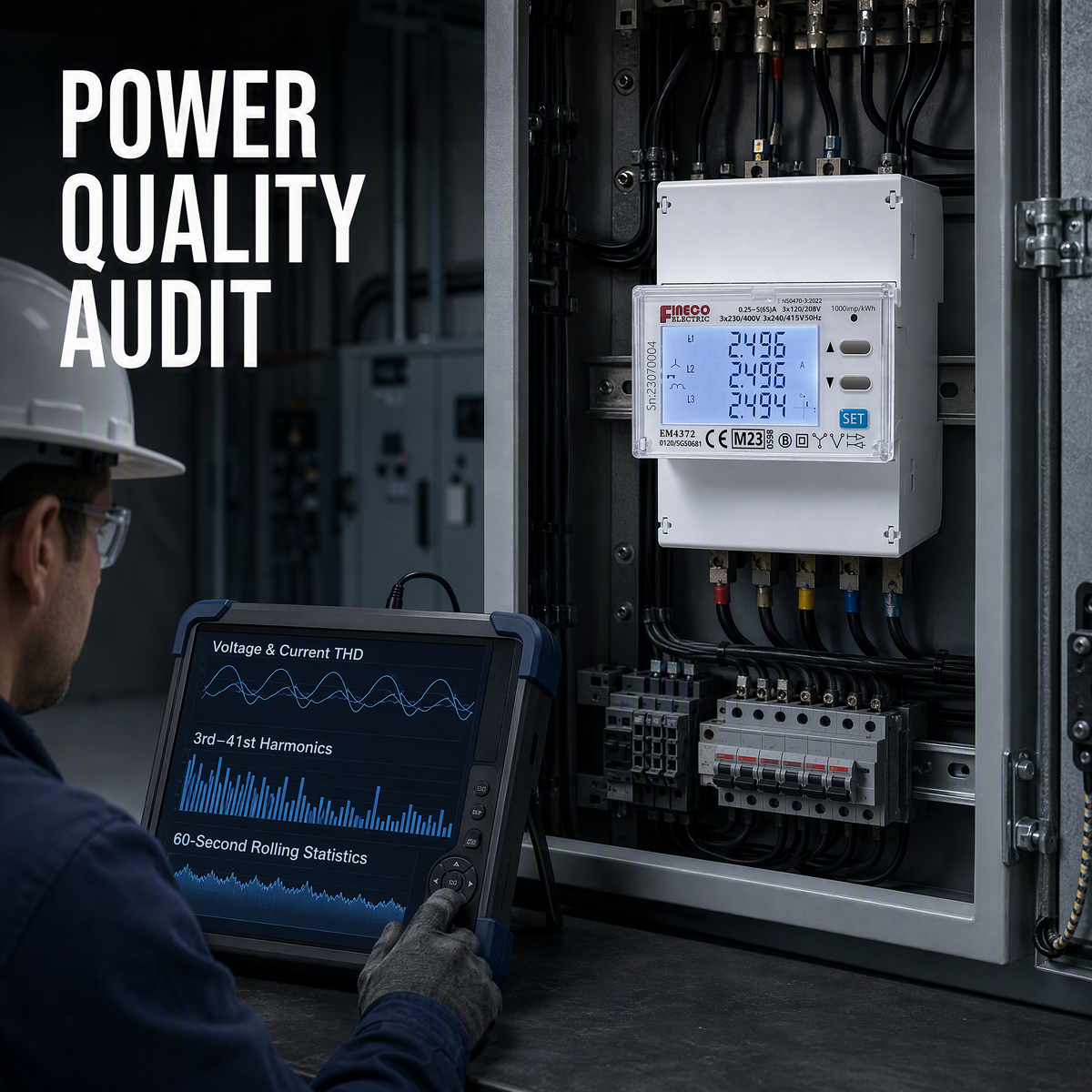

The EM4372 power quality meter is a standard four-module 72mm width, which can be used for single-phase two-wire/three-phase three-wire/three-phase four-wire power grids. The instrument provides real-time monitoring of A/B/C three phase Voltage(L-N,L-L), Amp, kW, kVA, kvar, PF, include maximum, minimum, average values. Phase angle, voltage phase sequence indications and Voltage asymmetry & current asymmetry.THD up to 41th order for voltage& current and Maximum demand on Amp & kW& kVA.

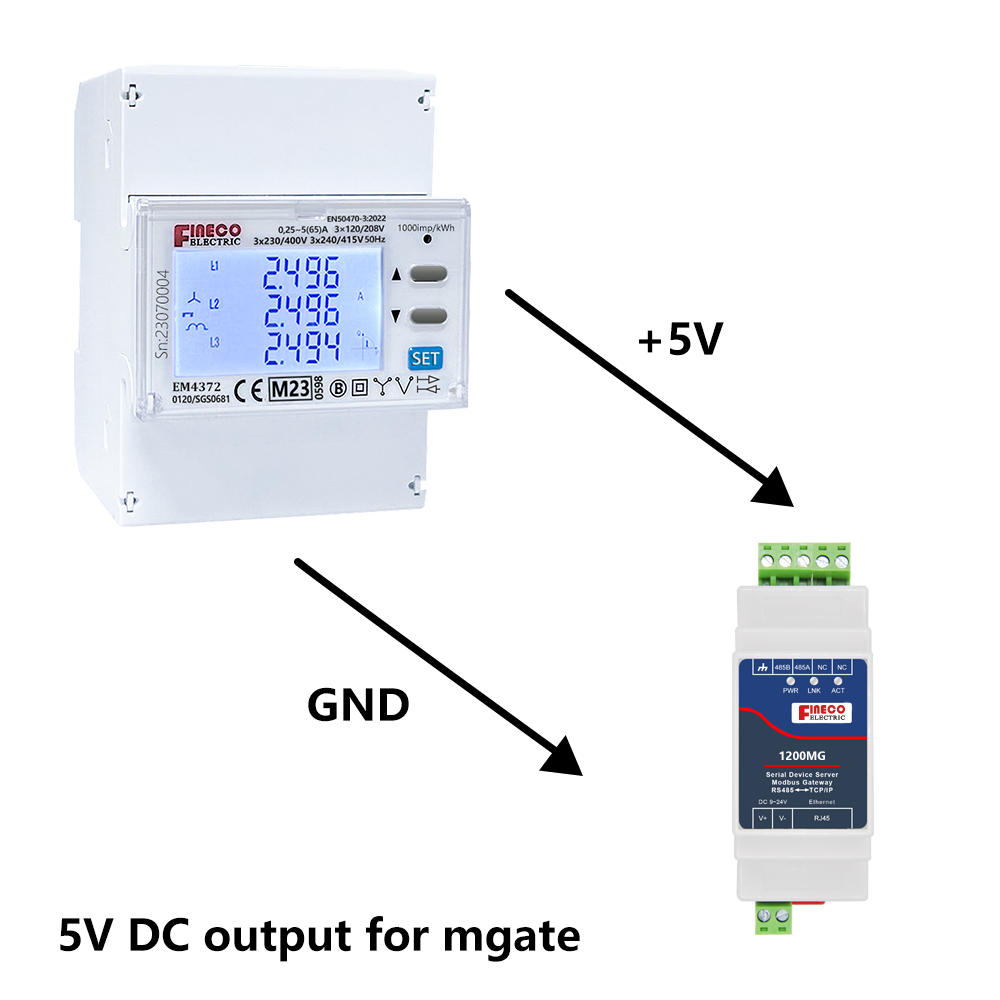

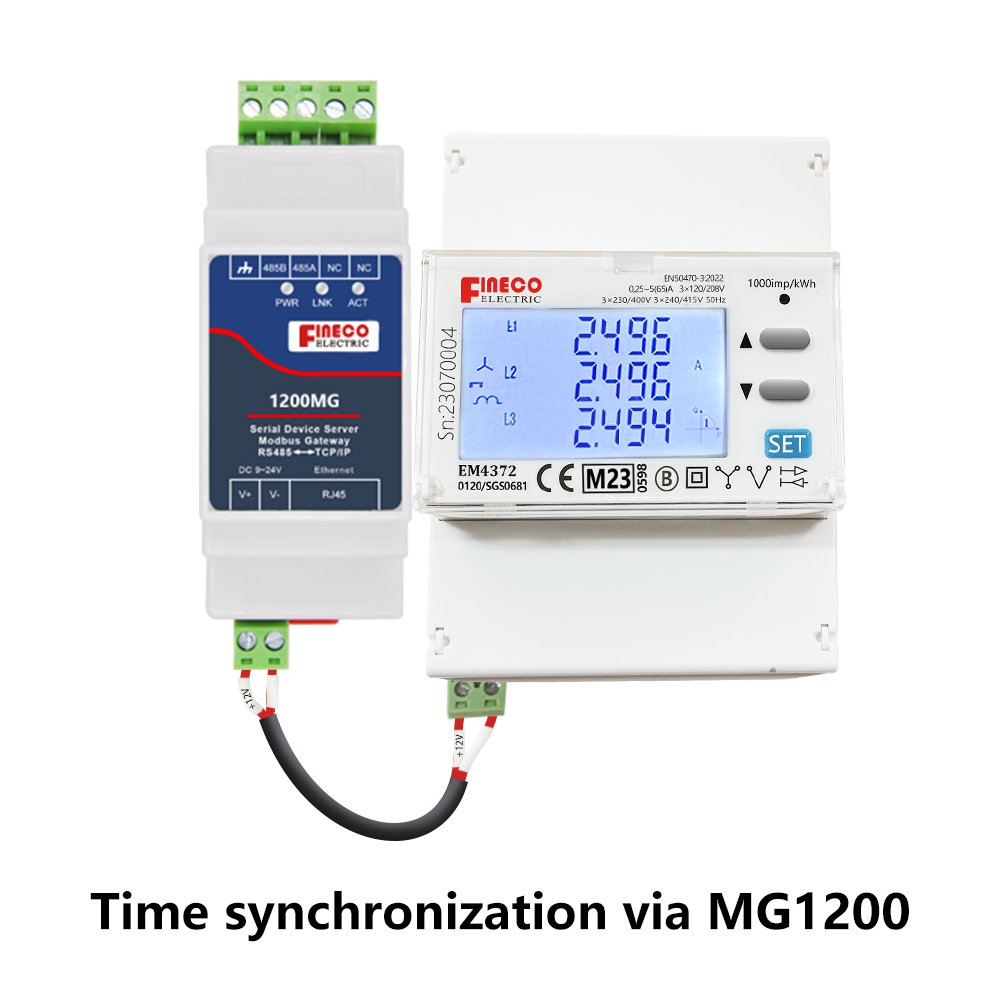

The meter can also be used in a dual-power system to measure grid and generator charges; The instrument's RS485 communication port allows remote system connection to provide all parameters in real time. User can define modbus protocol.
