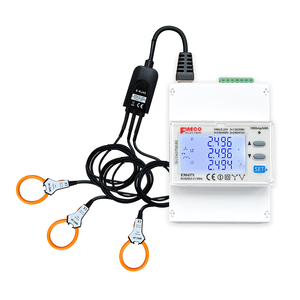

EM4371 CT ../5A four modular EV charging smart energy meter

Three phase metering 4 DIN modules
EV charging smart energy meter
Bidirectional energy used for photovoltaic systems
Dual source energy meter used for utility and Generator

Model:
EM4371
Brand:
Fineco
Code:
EM4371

Availability:

Quantity:



Inquire Add to Basket

three phase smart EV Charger Meter

The EM4371 is widely used in application scenarios such as building renovation projects, solar inverters, and electric vehicle charging piles to facilitate on-site construction. The meter is a standard four-module 72mm width, which can be used for single-phase two-wire/three-phase three-wire/three-phase four-wire power grids.

The instrument accurately measures the forward and reverse electric energy and grid voltage, current, active power, reactive power, apparent power, power factor and other grid parameters and voltage phase sequence indications. The instrument is connected to an external miniature contactor, which can realize remote on/off control of household equipment; The meter can also be used in a dual-power system to measure grid and generator charges; The instrument's RS485 communication port allows remote system connection to provide all parameters in real time.

EM4371 Certified according to MID Directive, Module B and Module D of Annex II, for legal metrology relevant to active electrical energy meters.

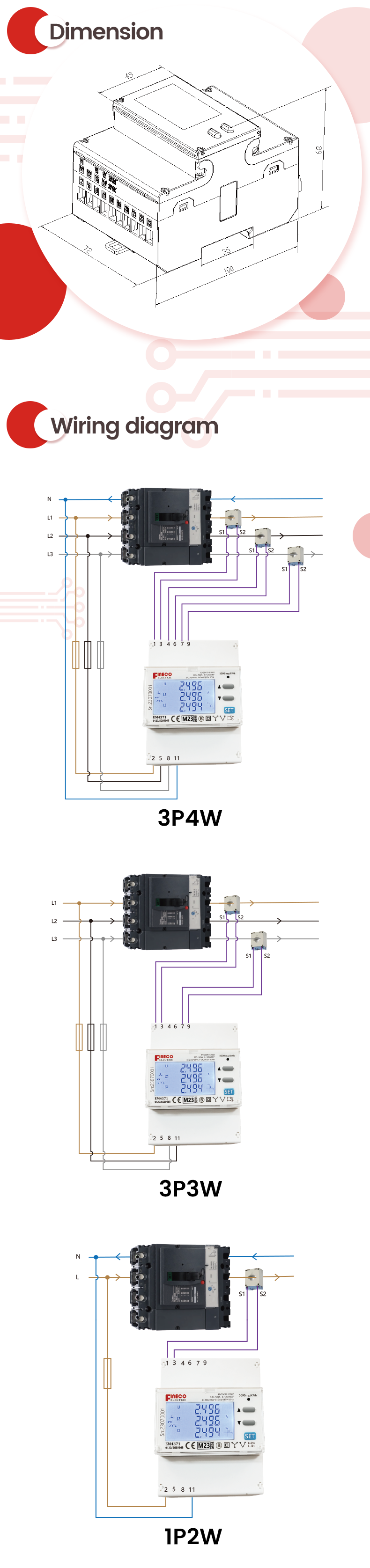

2024年4371详情页01-2

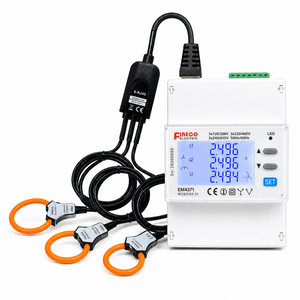

EM4371 0.33V three phase ~333mV~RS485~S0~DO~Dual source tariff energy Meter for Solar System Home

EM4373 CT 3*230/400V 0.05~5(6)A Three Phase ~Modbus ~ Smart Power Analyzer

EM4373-WiFi 3*120/230/240...400V 0.5~20(100)A three phase WiFi electricity meter WiFi energy meter monitor consumption

MID approved EM4373 lora module three phase power quality analyzer~lora rs485~modbus

EM115-Mod single phase~100A~MID~Modbus
