EM4373-WiFi 3*120/230/240...400V 0.5~20(100)A three phase WiFi electricity meter WiFi energy meter monitor consumption

● Compatible with LV,MV,HV applications
● System wiring method Y/Δ, Voltage L-L from 208V up to 415V
● More than 300 electrical parameters measured and displayed
● Harmonic analysis of voltage and current up to 41st order
● Voltage Asymmetry (Phase-Phase, Phase-Neural),Current Asymmetry
● Phase sequence indication
● System and phase bidirectional energy
● Load survey/profile, interval programmable
  • EM4373

  • Fineco

  • EM4373

Availability:
Quantity:

   EM4373-WiFi 3*120/230/240...400V 0.5~20(100)A

three phase WiFi electricity meter WiFi energy meter monitor consumption

Overview:

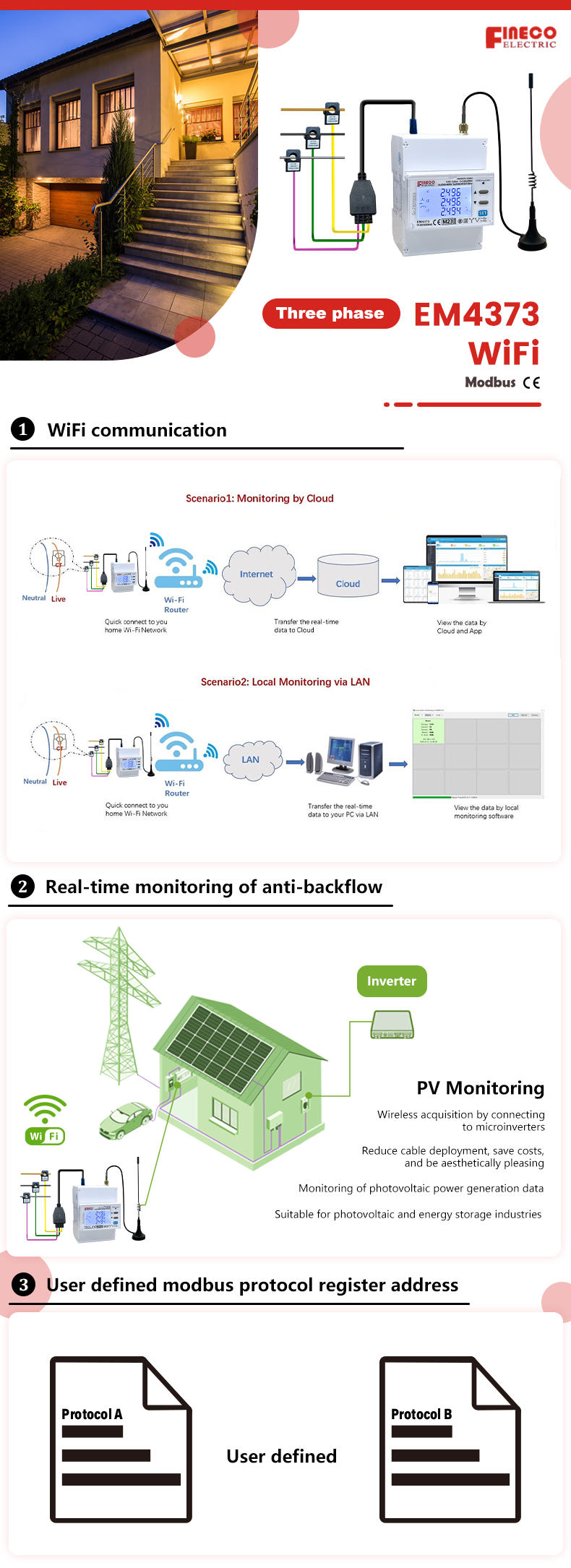

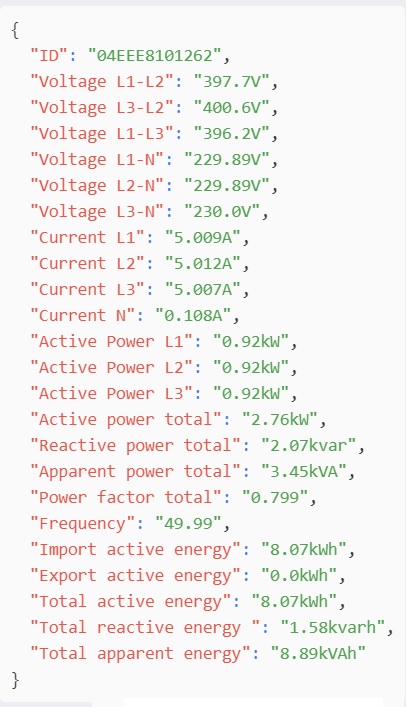

  EM4373 has three communication modes: RS485, WiFi and Bluetooth. The energy management system is connected through the 485 cable to realize energy consumption analysis; After configuring the WiFi SSID and password through BLE communication, the meter can be easily connected to the home router. Real-time monitoring of household power generation and consumption.WiFi communication used Modbus TCP/IP, Modbus RTU, MQTT.



CT 5A version are optional.



What is MQTT?

   MQTT (Message Queuing Telemetry Transport) is a lightweight publish-subscribe network protocol. lt is designed for constrained devices with low bandwidth. In a publish and subscribe system, each device can publish a message to a given topic. This is sent to the central MQTT broker, which forwards it to every device, which is subscribed to the given topic.

Production description:

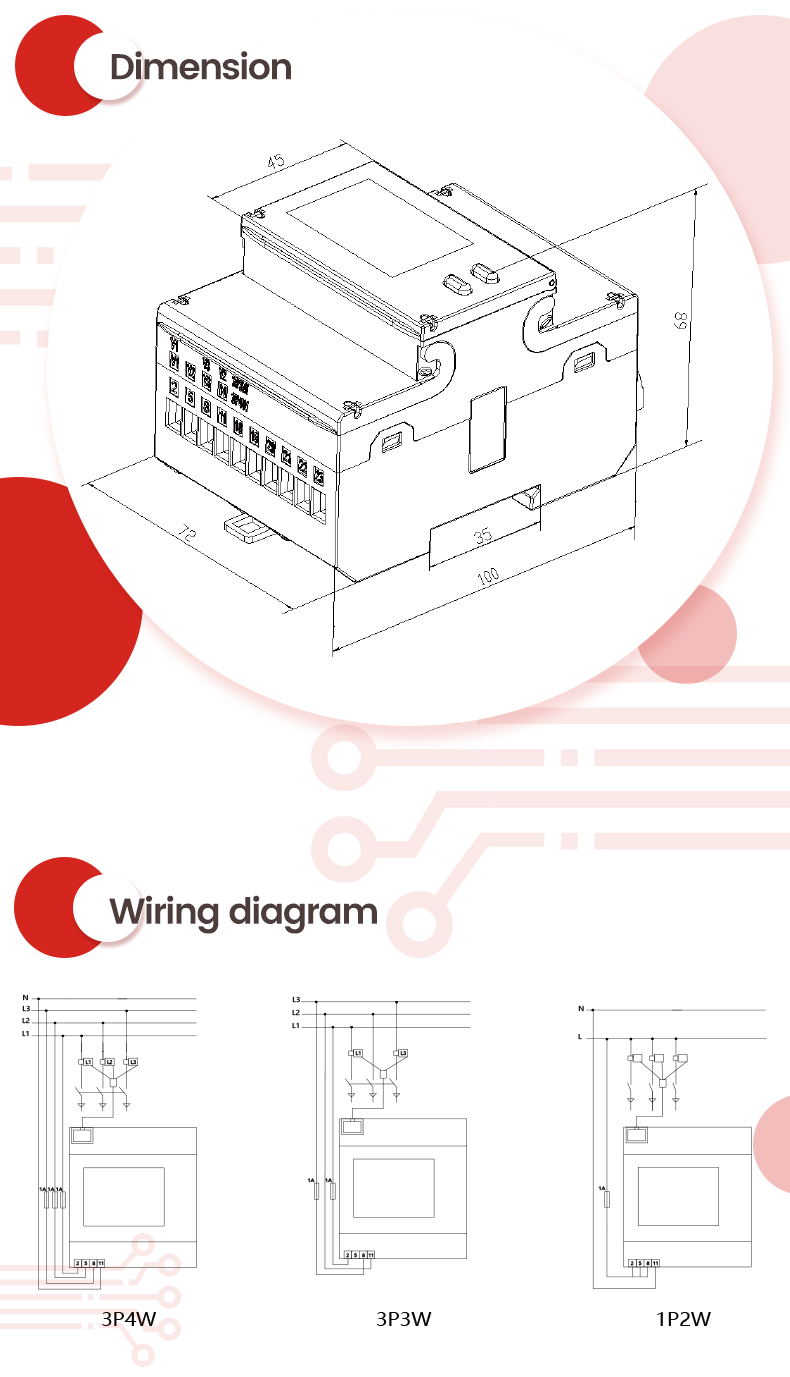

2024年4373-WiFi详情页01
