PA300 solar inverter energy meter three phase power meter use for inverter solar 41st Harmonic THD power quality analyzer

● Bidirectional energy per phase and 3- phases.
● Current measurements up to 600A with other CTs.
● Open-core CT & Rogowski cil can be selected.
● True RMS power measurements including Vol, Amp, Watts, Var, VA, Power Factor, Frequency.
● Store the min/max/avg/snapshot value for each measurement.
● Measure and store data for grid quality, THD up to 41harmonics.
● Record the entire response of a Frequency Control Auxiliary Service system (FCAS) event.
● Operate 12VDC/2W power supply to connected communications gateway.
● Relay control for external remote control.
● RS485 communication Modbus RTU protocol.
● 2-DIN size module for easy installation.
● Accuracy class 1 according to IEC62053-21.
● Remote firmware upgrades possible.

  • PA300

  • Fineco

  • PA300

Availability:
Quantity:
Inquire Add to Basket

PA300 solar inverter energy meter

                 three phase power meter used for inverter solar

                        41st Harmonic THD power quality analyzer

Overview:

Fineco PA300 is a DIN-rail 3-phase bidirectional energy meter designed for solar PV, hybrid inverter and energy storage systems. It supports 330mV split-core CTs up to 600A, RS485 Modbus RTU communication, 41st harmonic THD analysis and a built-in relay output. The meter measures import/export kWh and real-time power per phase, enabling inverters to perform zero-export control, AC-coupled battery charging and load-side energy monitoring. With Class 1 accuracy, 12V/2W auxiliary output and 50ms data refresh, it suits both residential and commercial three-phase applications.

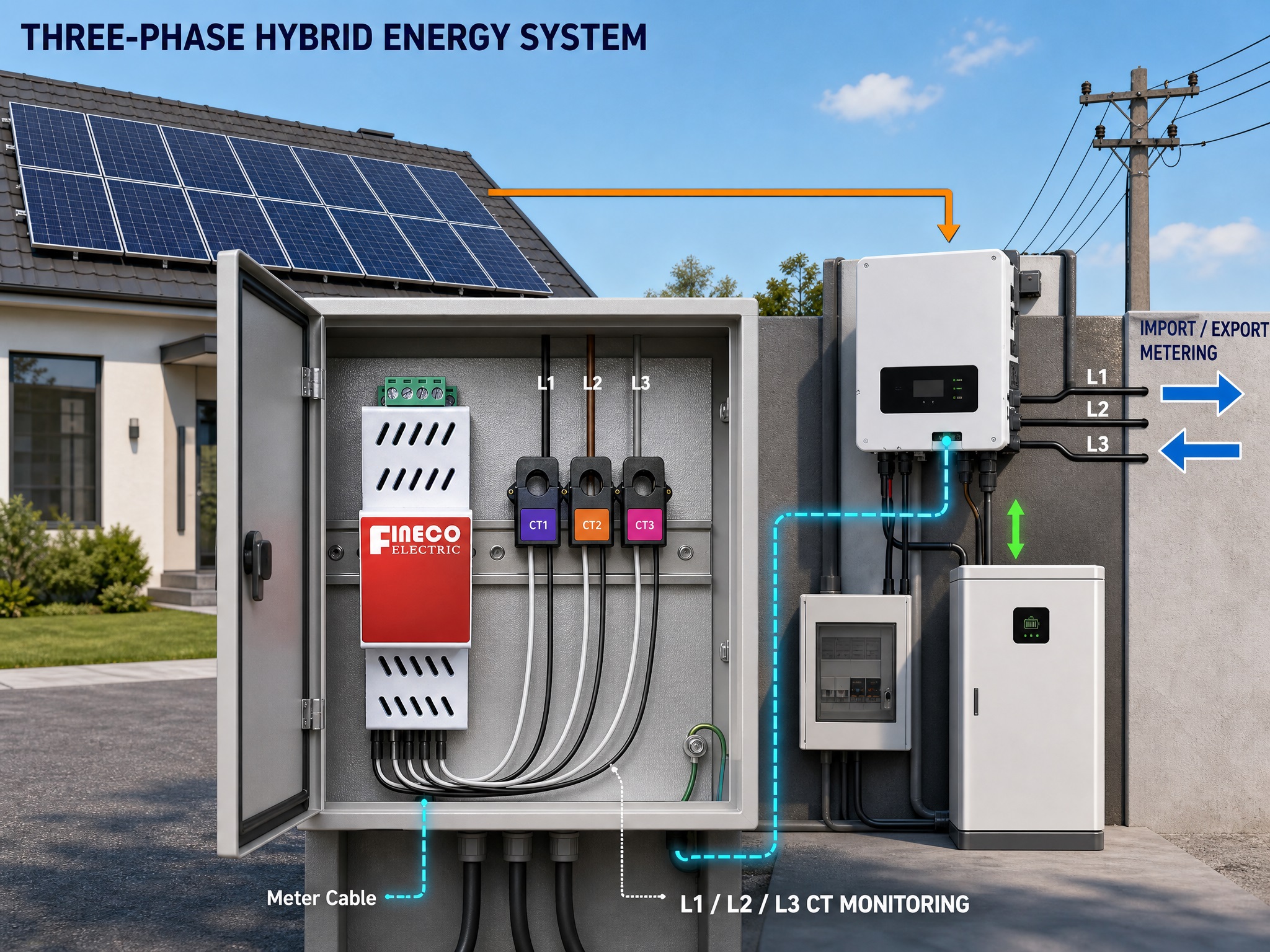

三相光储混合系统的并网点双向计量

Features:

● Bidirectional energy per phase and 3- phases.

● Current measurements up to 600A with other CTs.
● Open-core CT & Rogowski cil can be selected.
● True RMS power measurements including Vol, Amp, Watts, Var, VA, Power Factor, Frequency.
● Store the min/max/avg/snapshot value for each measurement.
● Measure and store data for grid quality, THD up to 41harmonics.
● Record the entire response of a Frequency Control Auxiliary Service system (FCAS) event.

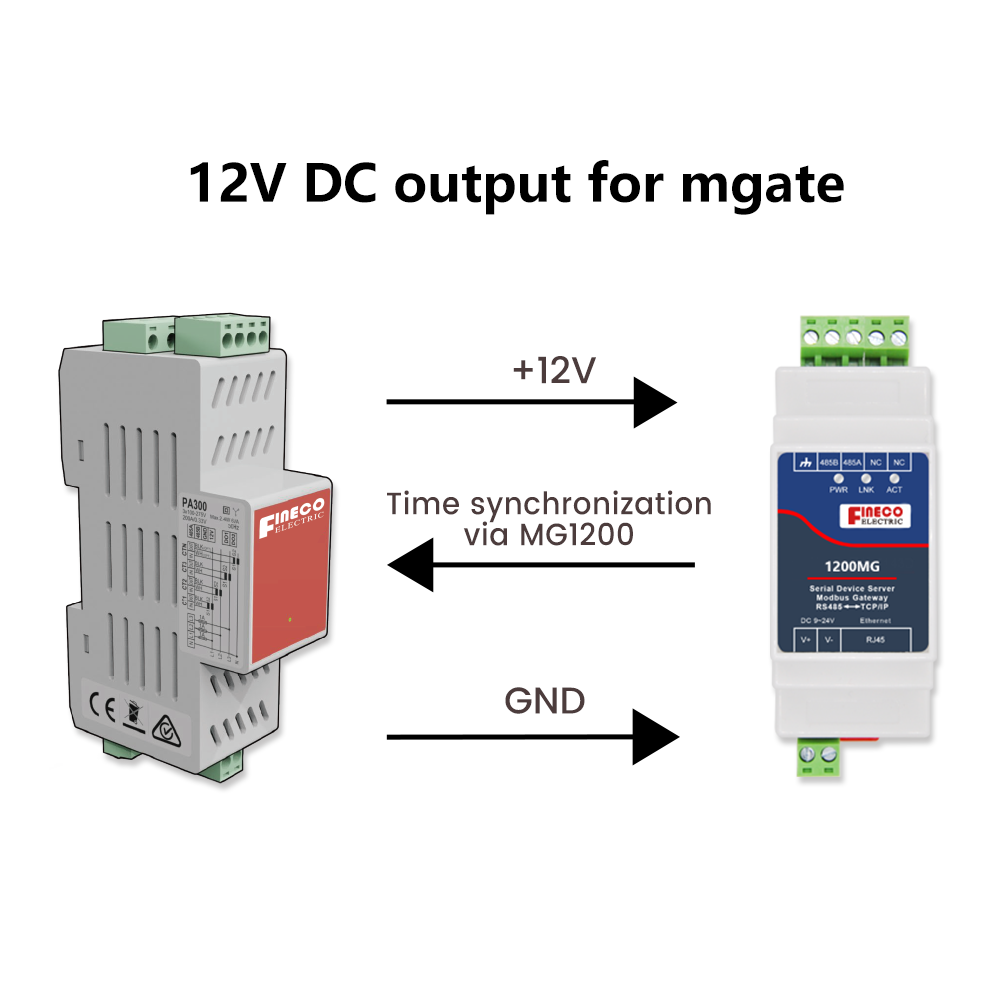

● Operate 12VDC/2W power supply to connected communications gateway.
● Relay control for external remote control.
● RS485 communication Modbus RTU protocol.
● 2-DIN size module for easy installation.
● Accuracy class 1 according to IEC62053-21.

● Remote firmware upgrades possible.

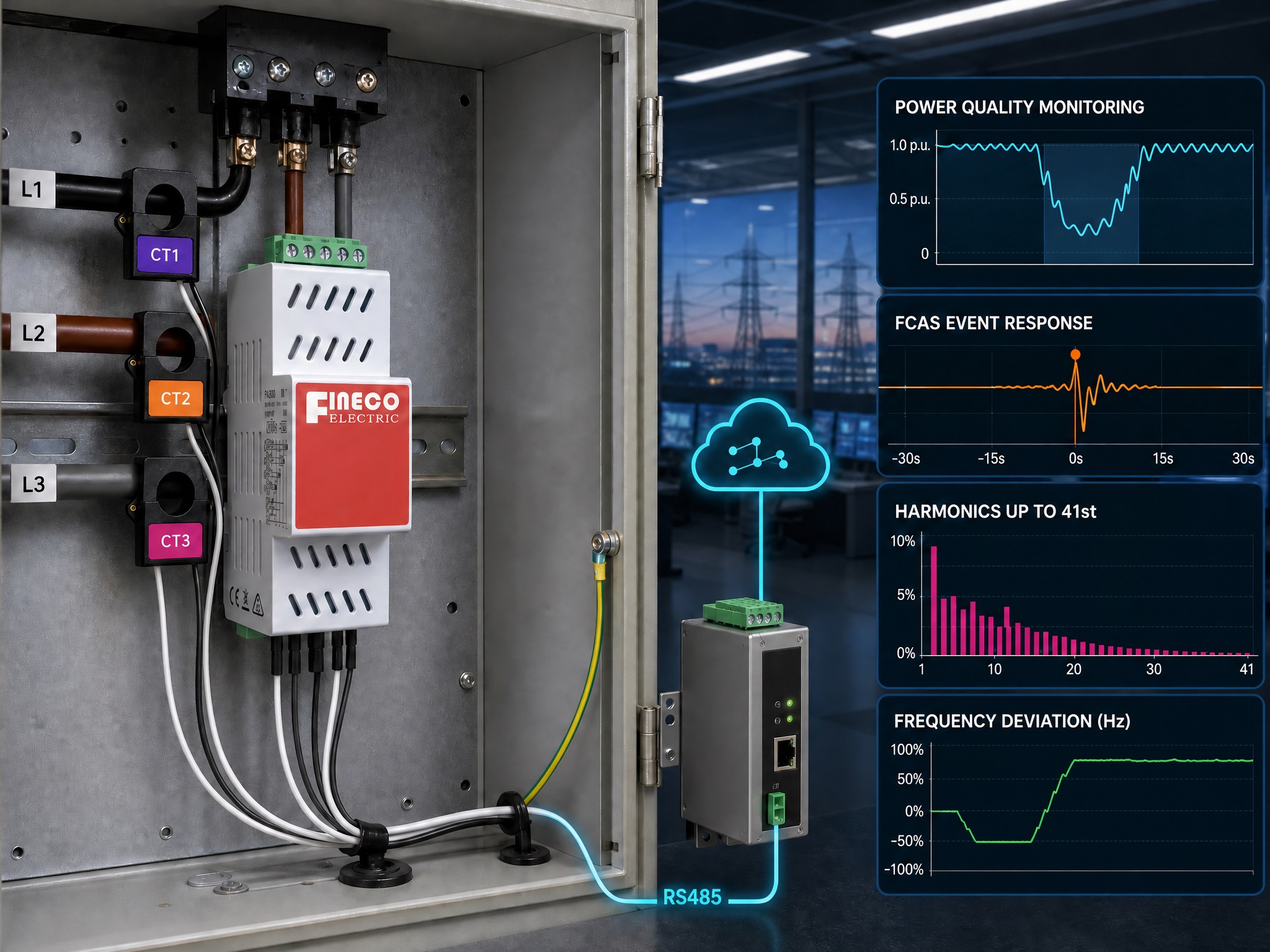

三相电网质量监测与辅助服务（FCAS）

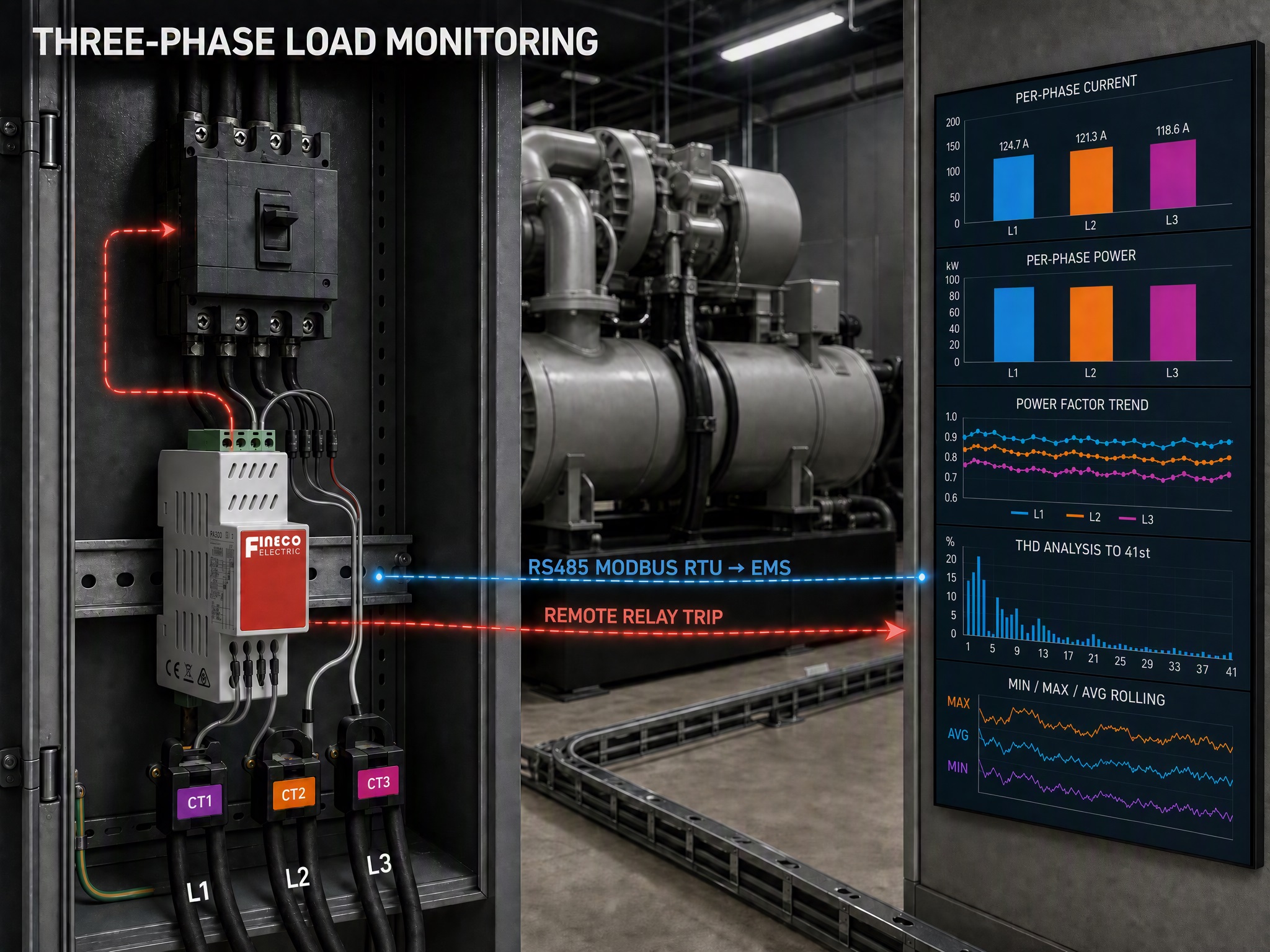

三相负载级能耗监测与优化


Produc Specification:

Previous:
Next:

Related Products

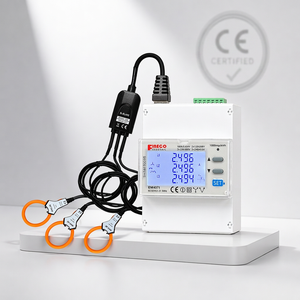

EM4371 0.33V three phase ~333mV~RS485~S0~DO~Dual source tariff energy Meter for Solar System Home
