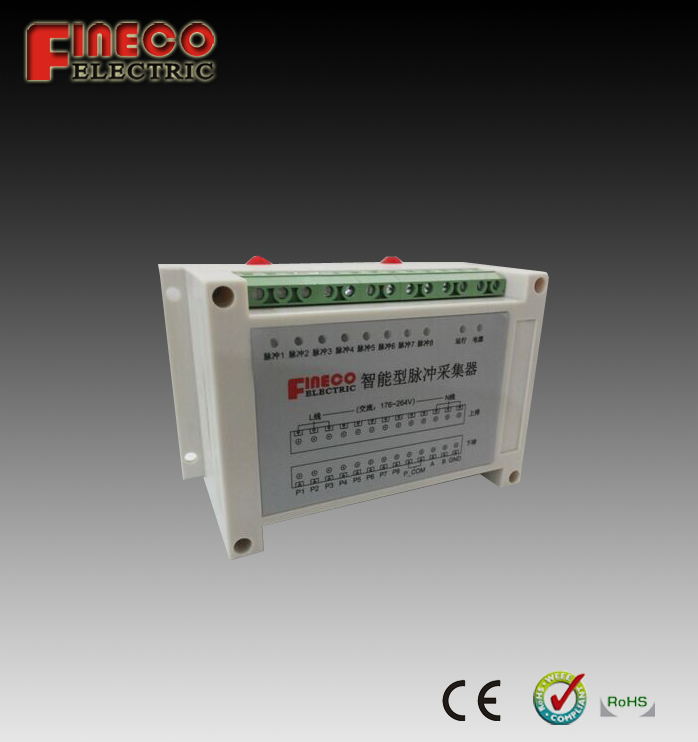

din rail smart pulse collector S0 impulse counter

     Storage temperature                                -30°C ~ +80°C

     Humanity                                                   20~90%RH

     Input terminals                                          8 Sets of +/-(Volt free)

     Burden                                                      Less than 1VA

     Auxiliary Supply                                        230v±30%

     RS485 bus details                                    Baud rate: 1200bps

                                                                      Protocol:  Modbus RTU

     Standards                                                 EMC testing for emissions

     Material                                                     ABS+PC

    Connection area main terminals                0-2.5mm²

Dimensions:

Wiring diagrams:

Main function:

Pulse input connections

Terminal P1-P8 are dedicated for pulse from external meters and care should be taken when connecting to these terminals. A red indicator LED has been allocated and will flash number 1-8 to indicate the HCC receiving pulses from external meters connected.

Communication Function

With a RS485 COM. Independently programmed for both utility type and tariff structure enabling Water, Gas, Electric and heat meters etc

RS485 communications transfer rates allow selected at 1200bps

 Data output

          Data can be output directly into excel, word, pdf via fineco power control system v1.0.
