EM4374 multichannel energy meter
multi circuit energy meter power clamp meter
The EM4374 multi circuit smart energy meter is compatible with Rogowski coils and voltage output type split-core current transformers. The sensors feature a plug-and-play RJ45 design, making installation and transportation convenient. It supports three-phase three-wire, three-phase four-wire, and single-phase modes, and can be configured for 6 single phases or 2 three phases.

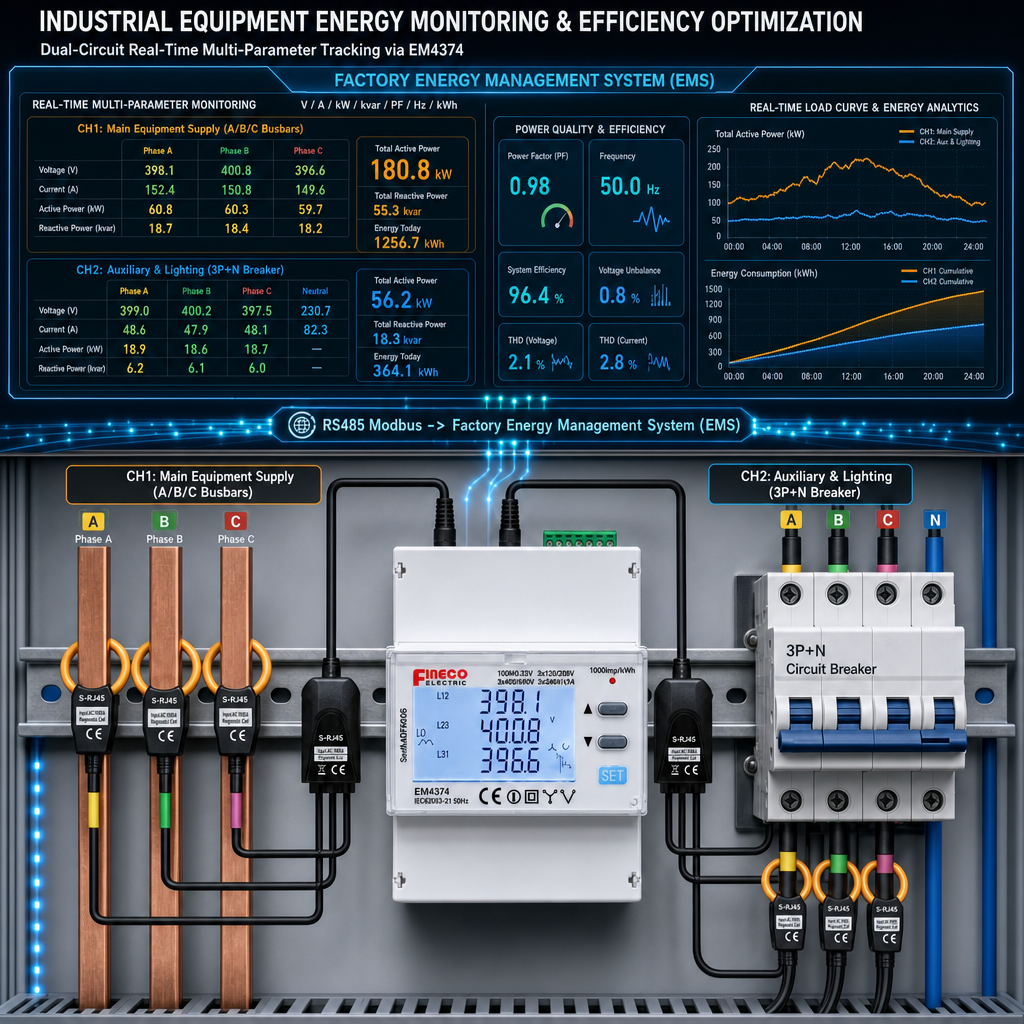

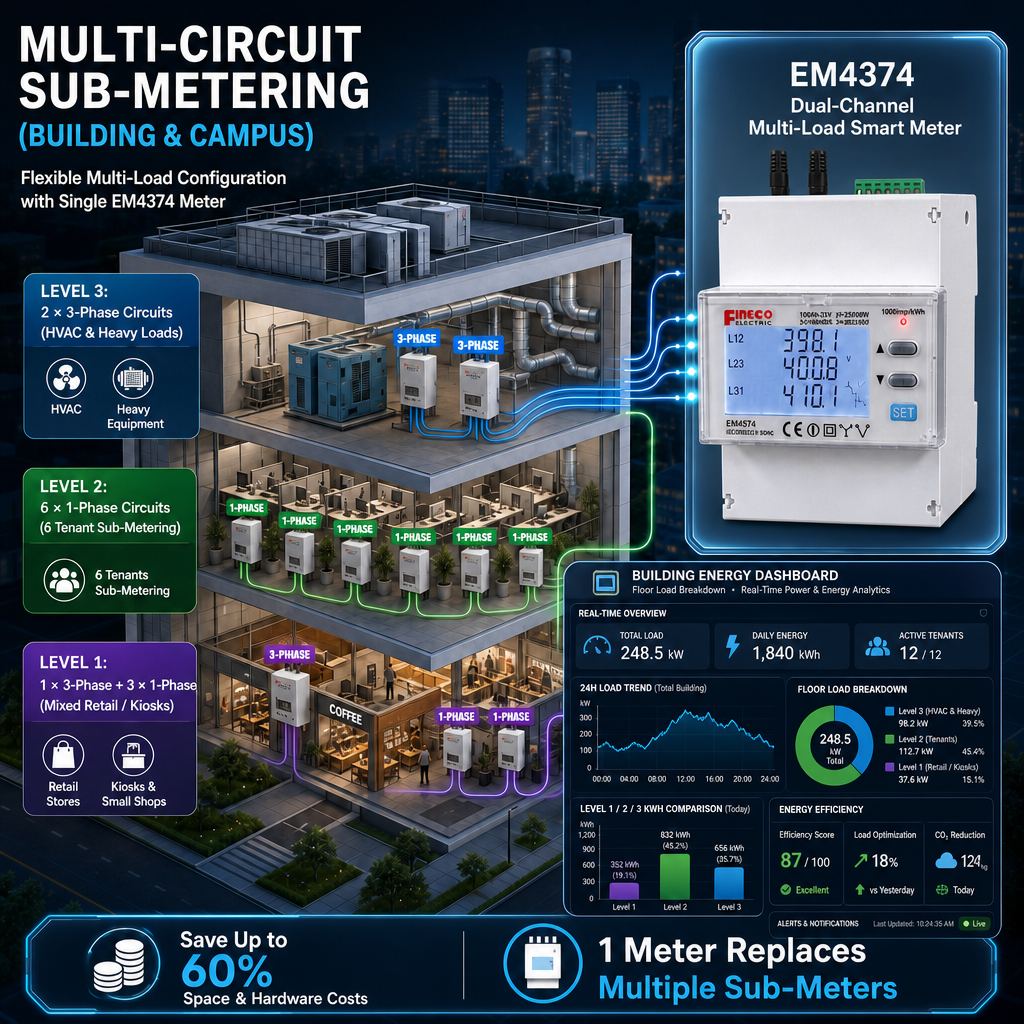

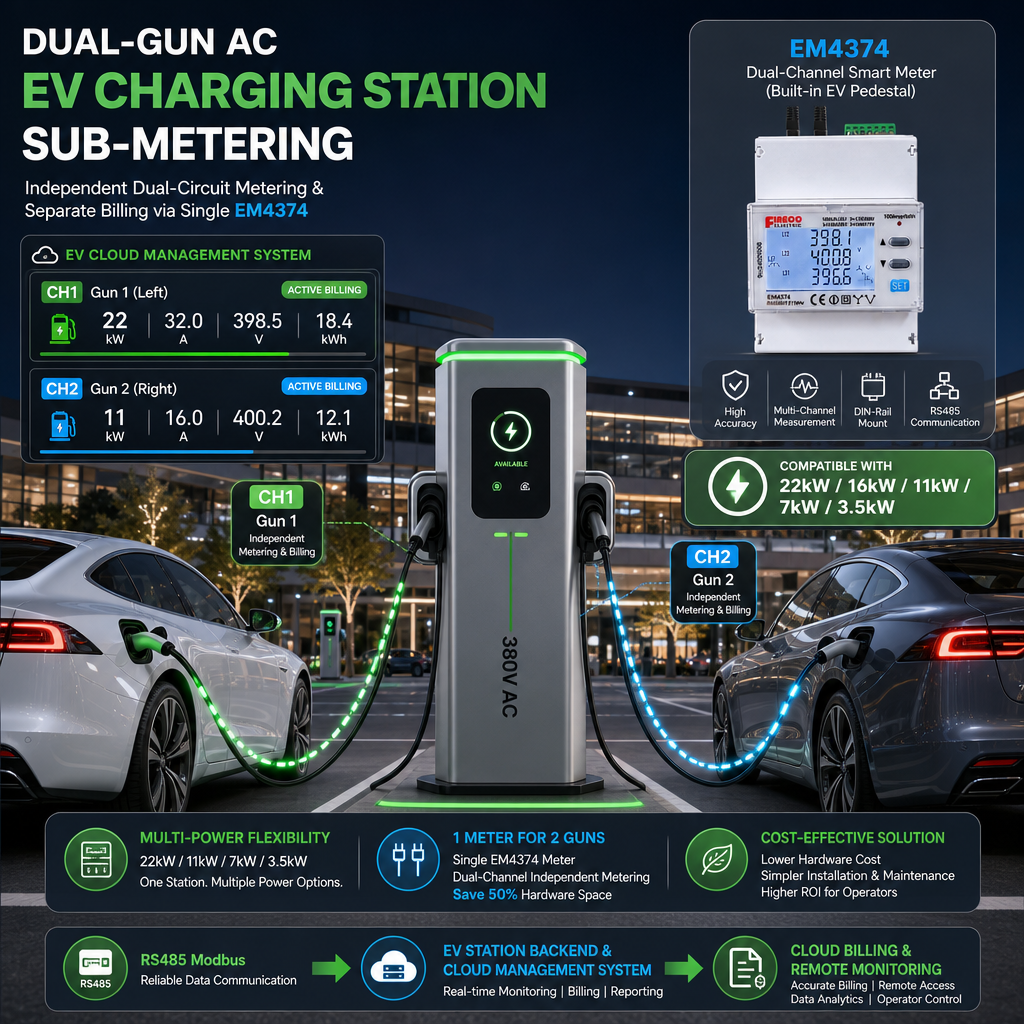

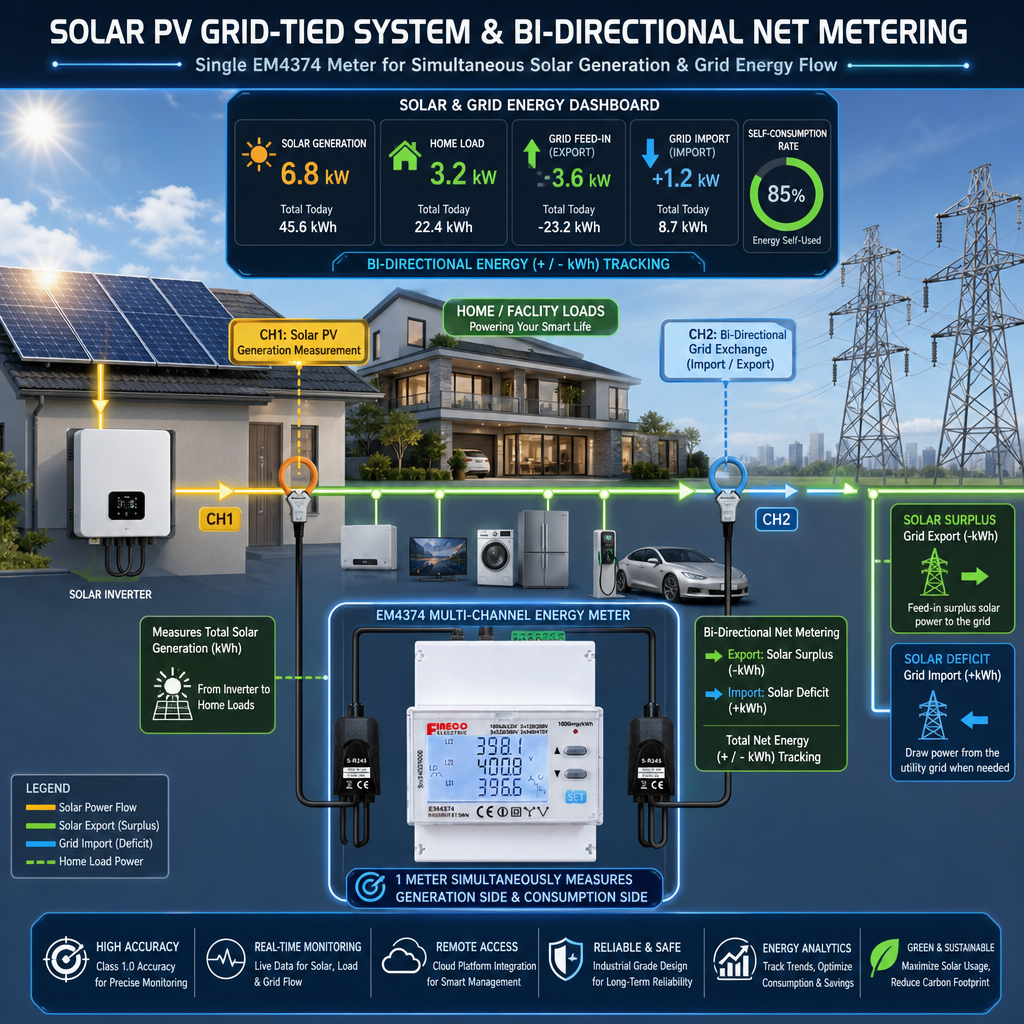

It can measure current, voltage, power, power factor, maximum demand, current-voltage harmonics, as well as voltage and current symmetry for L1, L2, and L3. Advanced measurement technology ensures high accuracy and stability. Equipped with an RS485 communication interface, it uses the standard Modbus RTU protocol, suitable for solar inverters, AC charging stations, industrial plants, commercial buildings, data centers, etc., supporting remote monitoring and management. It provides a 5V/2W DC power output for communication gateways and acquisition field control equipment, simplifying field wiring.
Due to the need to confirm whether your require a Rogowski coil or a current transformer, and to determine the size and current specifications, please contact the sales personnel for confirmation before placing your order.
| Type | Transformers-coil | Current |
| EM4374 | Open core | 80A , 100A |
| Rogowski coil | 400A , 600A , 1000A , 3000A |
EM4374 multichannel energy meter
multi circuit energy meter power clamp meter
The EM4374 multi circuit smart energy meter is compatible with Rogowski coils and voltage output type split-core current transformers. The sensors feature a plug-and-play RJ45 design, making installation and transportation convenient. It supports three-phase three-wire, three-phase four-wire, and single-phase modes, and can be configured for 6 single phases or 2 three phases.
It can measure current, voltage, power, power factor, maximum demand, current-voltage harmonics, as well as voltage and current symmetry for L1, L2, and L3. Advanced measurement technology ensures high accuracy and stability. Equipped with an RS485 communication interface, it uses the standard Modbus RTU protocol, suitable for solar inverters, AC charging stations, industrial plants, commercial buildings, data centers, etc., supporting remote monitoring and management. It provides a 5V/2W DC power output for communication gateways and acquisition field control equipment, simplifying field wiring.
Due to the need to confirm whether your require a Rogowski coil or a current transformer, and to determine the size and current specifications, please contact the sales personnel for confirmation before placing your order.
| Type | Transformers-coil | Current |
| EM4374 | Open core | 80A , 100A |
| Rogowski coil | 400A , 600A , 1000A , 3000A |
